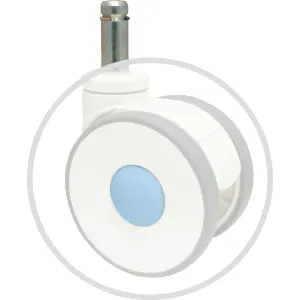

1146系列 — 46塑鋼雙球輪系列
轉動靈活、承載重量高、外型美觀，低重心，行走穩定順暢，另有不鏽鋼材質的五金件可供選擇；可提供無磁腳輪。
特色區
雙煞
定向煞
短踏板(只有4"&5"腳輪)
無磁腳輪
導電輪
特色區
雙煞
定向煞
短踏板(只有4"&5"腳輪)
無磁腳輪
導電輪
輪子選擇
全效輪
超級人造膠
導電輪
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 3",4"經典(narrow) | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 3",4"經典(narrow) | 60 x 60 mm | 42.5 x 42.5 mm * | M6 |
| 3",4"經典(narrow) | 62 x 94 mm | 45 x 75 mm (高級底板) * | M8 |
| 4",5" | 69 x 96 mm | 45 x 75 mm (高級底板) * | M8 |
| 3",4"經典(narrow),4",5" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
*有固定架和定向活動架可供選擇 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
插桿規格
| 規格 Size |
插桿直徑 x 長度 Diameter x Length |
規格 Size |
插桿直徑 x 長度 Diameter x Length |
| 3",4"經典(narrow) | 11 x 22 mm | ─ | C 型環(Grip Ring) |
| 3",4"經典(narrow) | 11 x 38 mm | ─ | C 型銅釦環(Grip Ring) |
| 4",5" | 21.6 x 56 mm | ─ | C 型環(Grip Ring) |
| 4",5" | 21.5 x 44.5 mm | 25.4 mm * | #10 X 24UNC+C 型環(Grip Ring) |
| 4",5" | 28 x 30 mm | 19 mm * | M8 |
| 4",5" | 28 x 40 mm | 19 mm * | M8 |
*有固定架和定向活動架可供選擇 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
絲扣規格
| 規格 Size |
絲扣牙徑 x 長度 Threaded Size |
規格 Size |
絲扣牙徑 x 長度 Threaded Size |
| 3",4"經典(narrow) | 3/8-16UNC x 25 mm | 3",4"經典(narrow) | M10 x 15 mm |
| 3",4"經典(narrow),4",5" | M12 x 25 mm | 4",5" | 3/8-16UNC x 32 mm |
| 4",5" | M12 x 25 mm (不銹鋼SS) | 4",5" | 1/2-12UNC x 25 mm |
| 4",5" | 1/2-12UNC x 25 mm (不銹鋼SS) | 4",5" | M16 x 30 mm |
空鉚規格
| 規格 Size |
孔徑 Centre Hole |
規格 Size |
孔徑 Centre Hole |
| 3",4"經典(narrow),4",5" | 10.5 mm | 4",5" | 12.5 mm |
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 3",4"經典(narrow) | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 3",4"經典(narrow) | 42 x 42 mm | 32 x 32 mm * | M4/M5 |
| 3",4"經典(narrow) | 60 x 60 mm | 42.5 x 42.5 mm * | M6 |
| 3",4"經典(narrow),4",5" | 69 x 96 mm | 45 x 75 mm (高級底板) * | M8 |
| 4",5" | 69 x 96 mm | 49 x 74.5 mm (斜孔底板) * | M8 |
*有固定架和定向活動架可供選擇 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
插桿規格
| 規格 Size |
插桿直徑 x 長度 Diameter x Length |
規格 Size |
插桿直徑 x 長度 Diameter x Length |
| 3",4"經典(narrow) | 11 x 22 mm | ─ | C 型環(Grip Ring) |
| 3",4"經典(narrow) | 11 x 38 mm | ─ | C 型銅釦環(Grip Ring) |
| 4",5" | 21.6 x 56 mm | ─ | C 型環(Grip Ring) |
| 4",5" | 21.5 x 44.5 mm | 25.4 mm * | #10 X 24UNC+C 型環(Grip Ring) |
| 4",5" | 28 x 30 mm | 19 mm * | M8 |
| 4",5" | 28 x 40 mm | 19 mm * | M8 |
*有固定架和定向活動架可供選擇 (Fixed Caster and Directional Swivel Caster is available. Please consult the factory.)
絲扣規格
| 規格 Size |
絲扣牙徑 x 長度 Threaded Size |
規格 Size |
絲扣牙徑 x 長度 Threaded Size |
| 3",4"經典(narrow) | 3/8-16UNC x 25 mm | 3",4"經典(narrow) | M10 x 15 mm |
| 3",4"經典(narrow),4",5" | M12 x 25 mm | 4",5" | 3/8-16UNC x 32 mm |
| 4",5" | M12 x 25 mm (不銹鋼SS) | 4",5" | 1/2-12UNC x 25 mm 0 |
| 4",5" | 1/2-12UNC x 25 mm (不銹鋼SS) | 4",5" | M16 x 30 mm |
空鉚規格
| 規格 Size |
孔徑 Centre Hole |
規格 Size |
孔徑 Centre Hole |
| 3",4"經典(narrow),4",5" | 10.5 mm | 4",5" | 12.5 mm |
輪子詳細資訊
| 輪徑 × 輪寬 | 規格 | 載重 | 材質 | 型號 | 軸承 | 總高 | 偏心距 | 迴旋半徑 | |||
| 固定 | 活動 | 雙煞 | 定向煞 | ||||||||
| 輪面寬度 Width of Tread 75mm x 14mm (3" x 0.55") _________ 腳輪寬度 Caster width 75mm x 59mm (3" x 2.3") |
四角底板 Plate |
90kgs (198lbs) | 全效輪 Resolute |
1146-03-84-1 | 1146-03-84-2 | 1146-03-84-4 | 1146-03-84-9 | 滾珠軸承 Ball Bearing |
91mm | 23mm | 活動 67mm |
| 90kgs (198lbs) | 導電輪 E-conductive |
1146-03-85-1 | 1146-03-85-2 | 1146-03-85-4 | 1146-03-85-9 | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
1146-03-86-1 | 1146-03-86-2 | 1146-03-86-4 | 1146-03-86-9 | ||||||
| 絲扣 Threaded Stem |
90kgs (198lbs) | 全效輪 Resolute |
─ | 1146-03-84-2 | 1146-03-84-4 | ─ | 84mm | ||||
| 90kgs (198lbs) | 導電輪 E-conductive |
─ | 1146-03-85-2 | 1146-03-85-4 | ─ | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-03-86-2 | 1146-03-86-4 | ─ | ||||||
| 空鉚 SingleBolt Hole |
90kgs (198lbs) | 全效輪 Resolute |
─ | 1146-03-84-2 | 1146-03-84-4 | ─ | 81mm | ||||
| 90kgs (198lbs) | 導電輪 E-conductive |
─ | 1146-03-85-2 | 1146-03-85-4 | ─ | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-03-86-2 | 1146-03-86-4 | ─ | ||||||
| 插桿 Cylindrical Stem |
90kgs (198lbs) | 全效輪 Resolute |
─ | 1146-03-84-2 | 1146-03-84-4 | ─ | 81mm | ||||
| 90kgs (198lbs) | 導電輪 E-conductive |
─ | 1146-03-85-2 | 1146-03-85-4 | ─ | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-03-86-2 | 1146-03-86-4 | ─ | ||||||
| 經典款 (Narrow Version) 輪面寬度 Width of Tread 100mm x 14mm (4" x 0.55") _________ 腳輪寬度 Caster width 100mm x 60.5mm (4" x 2.4") |
四角底板 Plate |
90kgs (198lbs) | 全效輪 Resolute |
1146-04-84-1(1) | 1146-04-84-2(1) | 1146-04-84-4(1) | 1146-04-84-9(1) | 滾珠軸承 Ball Bearing |
122mm | 28mm | 活動 83mm 煞車(短踏板) |
| 90kgs (198lbs) | 導電輪 E-conductive |
1146-04-85-1(1) | 1146-04-85-2(1) | 1146-04-85-4(1) | 1146-04-85-9(1) | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
1146-04-86-1(1) | 1146-04-86-2(1) | 1146-04-86-4(1) | 1146-04-86-9(1) | ||||||
| 絲扣 Threaded Stem |
90kgs (198lbs) | 全效輪 Resolute |
─ | 1146-04-84-5(1) | 1146-04-84-6(1) | ─ | 115mm | ||||
| 90kgs (198lbs) | 導電輪 E-conductive |
─ | 1146-04-85-5(1) | 1146-04-85-6(1) | ─ | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-04-86-5(1) | 1146-04-86-6(1) | ─ | ||||||
| 空鉚 SingleBolt Hole |
90kgs (198lbs) | 全效輪 Resolute |
─ | 1146-04-84-5(1) | 1146-04-84-6(1) | ─ | 112mm | ||||
| 90kgs (198lbs) | 導電輪 E-conductive |
─ | 1146-04-85-5(1) | 1146-04-85-6(1) | ─ | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-04-86-5(1) | 1146-04-86-6(1) | ─ | ||||||
| 插桿 Cylindrical Stem |
90kgs (198lbs) | 全效輪 Resolute |
─ | 1146-04-84-5(1) | 1146-04-84-6(1) | ─ | 112mm | ||||
| 90kgs (198lbs) | 導電輪 E-conductive |
─ | 1146-04-85-5(1) | 1146-04-85-6(1) | ─ | ||||||
| 90kgs (198lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-04-86-5(1) | 1146-04-86-6(1) | ─ | ||||||
| 輪面寬度 Width of Tread 100mm x 18mm (4" x 0.7") _________ 腳輪寬度 Caster width 100mm x 82mm (4" x 3.2") |
四角底板 Plate |
100kgs (220lbs) | 全效輪 Resolute |
1146-04-84-1 | 1146-04-84-2 | 1146-04-84-4 | 1146-04-84-9 | 滾珠軸承 Ball Bearing |
122mm | 32mm | 活動 91mm 煞車(短踏板) |
| 100kgs (220lbs) | 導電輪 E-conductive |
1146-04-85-1 | 1146-04-85-2 | 1146-04-85-4 | 1146-04-85-9 | ||||||
| 100kgs (220lbs) | 超級人造膠 TPR on PP Core |
1146-04-86-1 | 1146-04-86-2 | 1146-04-86-4 | 1146-04-86-9 | ||||||
| 絲扣 Threaded Stem |
100kgs (220lbs) | 全效輪 Resolute |
─ | 1146-04-84-2 | 1146-04-84-4 | ─ | 120mm | ||||
| 100kgs (220lbs) | 導電輪 E-conductive |
─ | 1146-04-85-2 | 1146-04-85-4 | ─ | ||||||
| 100kgs (220lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-04-86-2 | 1146-04-86-4 | ─ | ||||||
| 空鉚 SingleBolt Hole |
100kgs (220lbs) | 全效輪 Resolute |
─ | 1146-04-84-2 | 1146-04-84-4 | ─ | 120mm | ||||
| 100kgs (220lbs) | 導電輪 E-conductive |
─ | 1146-04-85-2 | 1146-04-85-4 | ─ | ||||||
| 100kgs (220lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-04-86-2 | 1146-04-86-4 | ─ | ||||||
| 插桿 Cylindrical Stem |
100kgs (220lbs) | 全效輪 Resolute |
1146-04-84-1 | 1146-04-84-2 | 1146-04-84-4 | 1146-04-84-9 | 120mm | ||||
| 100kgs (220lbs) | 導電輪 E-conductive |
1146-04-85-1 | 1146-04-85-2 | 1146-04-85-4 | 1146-04-85-9 | ||||||
| 100kgs (220lbs) | 超級人造膠 TPR on PP Core |
1146-04-86-1 | 1146-04-86-2 | 1146-04-86-4 | 1146-04-86-9 | ||||||
| 輪面寬度 Width of Tread 125mm x 18mm (5" x 0.7") _________ 腳輪寬度 Caster width 125mm x 84.5mm (5" x 3.3") |
四角底板 Plate |
110kgs (242lbs) | 全效輪 Resolute |
1146-05-84-1 | 1146-05-84-2 | 1146-05-84-4 | 1146-05-84-9 | 滾珠軸承 Ball Bearing |
146mm | 40mm | 活動 110mm |
| 110kgs (242lbs) | 導電輪 E-conductive |
1146-05-85-1 | 1146-05-85-2 | 1146-05-85-4 | 1146-05-85-9 | ||||||
| 110kgs (242lbs) | 超級人造膠 TPR on PP Core |
1146-05-86-1 | 1146-05-86-2 | 1146-05-86-4 | 1146-05-86-9 | ||||||
| 絲扣 Threaded Stem |
110kgs (242lbs) | 全效輪 Resolute |
─ | 1146-05-84-2 | 1146-05-84-4 | ─ | 144mm | ||||
| 110kgs (242lbs) | 導電輪 E-conductive |
─ | 1146-05-85-2 | 1146-05-85-4 | ─ | ||||||
| 110kgs (242lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-05-86-2 | 1146-05-86-4 | ─ | ||||||
| 空鉚 SingleBolt Hole |
110kgs (242lbs) | 全效輪 Resolute |
─ | 1146-05-84-2 | 1146-05-84-4 | ─ | 143mm | ||||
| 110kgs (242lbs) | 導電輪 E-conductive |
─ | 1146-05-85-2 | 1146-05-85-4 | ─ | ||||||
| 110kgs (242lbs) | 超級人造膠 TPR on PP Core |
─ | 1146-05-86-2 | 1146-05-86-4 | ─ | ||||||
| 插桿 Cylindrical Stem |
110kgs (242lbs) | 全效輪 Resolute |
1146-05-84-1 | 1146-05-84-2 | 1146-05-84-4 | 1146-05-84-9 | 143mm | ||||
| 110kgs (242lbs) | 導電輪 E-conductive |
1146-05-85-1 | 1146-05-85-2 | 1146-05-85-4 | 1146-05-85-9 | ||||||
| 110kgs (242lbs) | 超級人造膠 TPR on PP Core |
1146-05-86-1 | 1146-05-86-2 | 1146-05-86-4 | 146-05-86-9 | ||||||
