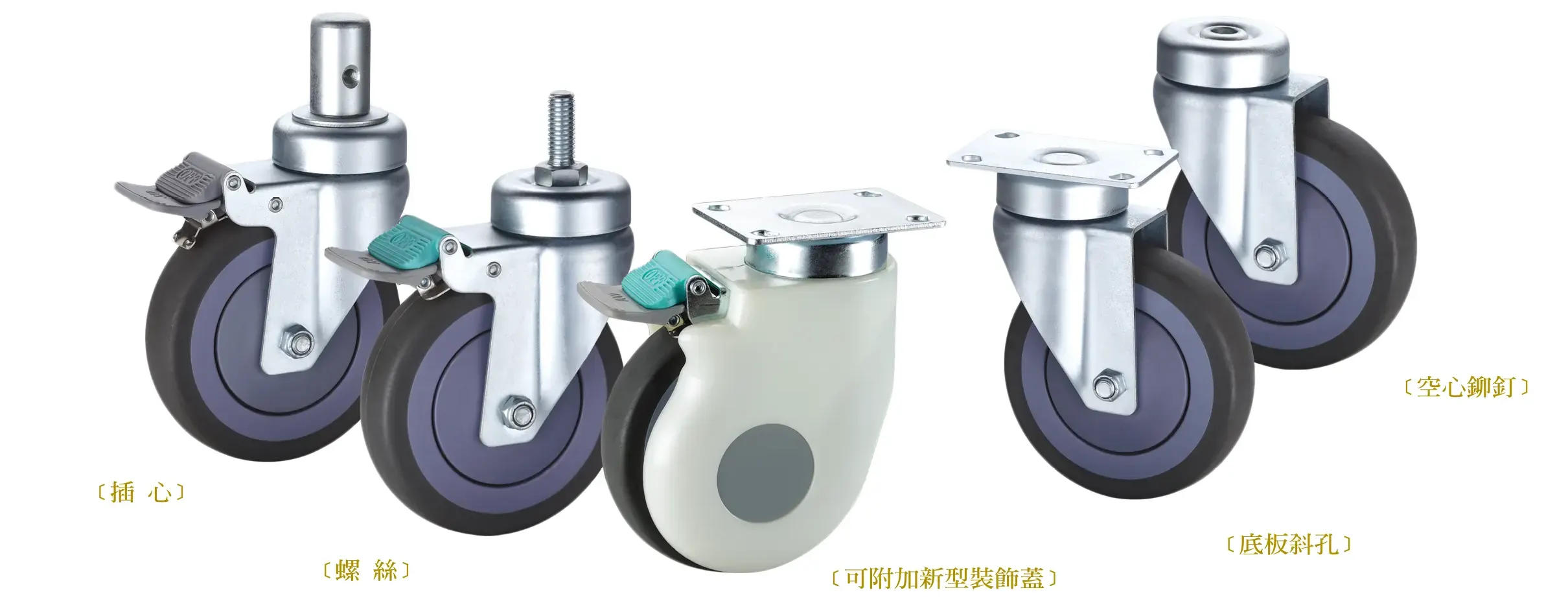

底板斜孔
| 品項規格 |
輪徑 |
輪寬 |
總高 |
偏心距 |
底板 |
底板孔距 |
荷重 |
| 精密活動架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
96 × 69mm |
75 × 45mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
96 × 69mm |
75 × 45mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
96 × 69mm |
75 × 45mm |
120kgs/26lbs |
| 精密活剎架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
96 × 69mm |
75 × 45mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
96 × 69mm |
75 × 45mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
96 × 69mm |
75 × 45mm |
120kgs/26lbs |
| 精密90度定向架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
96 × 69mm |
75 × 45mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
96 × 69mm |
75 × 45mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
96 × 69mm |
75 × 45mm |
120kgs/26lbs |
| 精密180度定向架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
96 × 69mm |
75 × 45mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
96 × 69mm |
75 × 45mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
96 × 69mm |
75 × 45mm |
120kgs/26lbs |
| 精密360度定向架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
96 × 69mm |
75 × 45mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
96 × 69mm |
75 × 45mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
96 × 69mm |
75 × 45mm |
120kgs/26lbs |
插心
| 品項規格 |
輪徑 |
輪寬 |
總高 |
偏心距 |
插桿 |
荷重 |
| 精密活動架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
Ø 28 × 30 |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
Ø 28 × 30 |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
Ø 28 × 30 |
120kgs/26lbs |
| 精密活剎架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
Ø 28 × 30 |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
Ø 28 × 30 |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
Ø 28 × 30 |
120kgs/26lbs |
| 精密180度定向架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
Ø 28 × 30 |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
Ø 28 × 30 |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
Ø 28 × 30 |
120kgs/26lbs |
〈本荷重為安裝全效輪之荷重，若裝其他輪子荷重將會不同〉
螺絲
| 品項規格 |
輪徑 |
輪寬 |
總高 |
偏心距 |
螺絲 |
荷重 |
| 精密活動架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
1/2" × 29mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
1/2" × 29mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
1/2" × 29mm |
120kgs/26lbs |
| 精密活剎架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
1/2" × 29mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
1/2" × 29mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
1/2" × 29mm |
120kgs/26lbs |
| 精密180度定向架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
1/2" × 29mm |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
1/2" × 29mm |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
1/2" × 29mm |
120kgs/26lbs |
空心鉚釘
| 品項規格 |
輪徑 |
輪寬 |
總高 |
偏心距 |
空心鉚釘 |
荷重 |
| 精密活動架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
Ø 12.5 |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
Ø 12.5 |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
Ø 12.5 |
120kgs/26lbs |
| 精密活剎架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
Ø 12.5 |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
Ø 12.5 |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
Ø 12.5 |
120kgs/26lbs |
| 精密180度定向架 |
4"(100mm) |
1-1/4"(32mm) |
140.5mm |
43.4mm |
Ø 12.5 |
100kgs/220lbs |
| 5"(125mm) |
1-1/4"(32mm) |
164.5mm |
38.6mm |
Ø 12.5 |
110kgs/242lbs |
| 6"(150mm) |
1-1/4"(32mm) |
192.0mm |
39.0mm |
Ø 12.5 |
120kgs/26lbs |
〈本荷重為安裝全效輪之荷重，若裝其他輪子荷重將會不同〉
