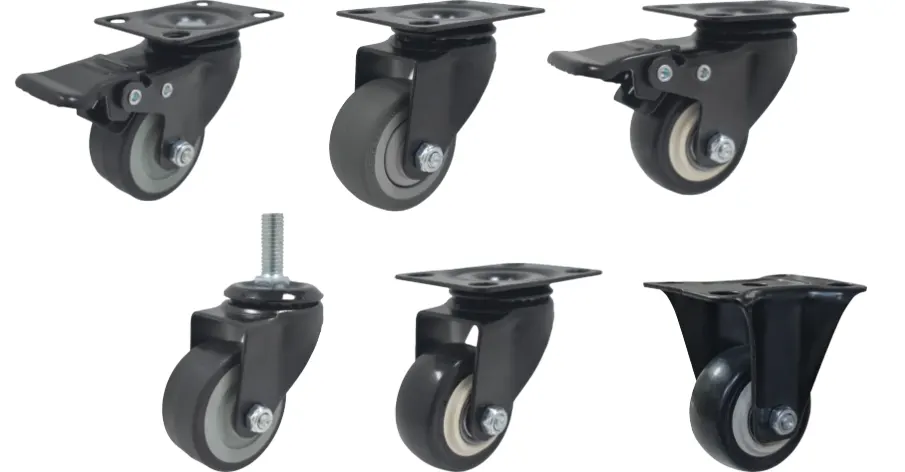

1127系列 — H-3系列
H-3系列擁有優異的承載能力，轉動靈活、轉向便捷，可輕鬆改變方向，操作省力又高效。
移動時穩定性極佳，不易傾倒或晃動，適用性廣泛。提供多種安裝方式與尺寸規格，能靈活適配各類設備與工作環境，
安裝與更換都非常方便。適合應用於工業、物流倉儲、商業場所、醫療行業及餐飲服務等多種場景，是提升效率與穩定性的最佳選擇。
輪子選擇
PPR輪
全效輪
PPP輪
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 60mm × 43mm (2-3/8"× 1-3/4") |
45mm × 30mm (1-3/4"× 1-1/8") |
6mm (3/16") |
| 2" | 69mm × 49mm (2-3/4"× 1-7/8") |
52mm × 35mm (2"× 1-3/8") |
8mm (5/16") |
絲扣規格
| 規格 Size |
絲扣牙徑 x 長度 Threaded Size |
規格 Size |
絲扣牙徑 x 長度 Threaded Size |
| 1-1/2" | M8 × 25mm | 2" | M10 × 25mm |
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 60mm × 43mm (2-3/8"× 1-3/4") |
45mm × 30mm (1-3/4"× 1-1/8") |
6mm (3/16") |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1-1/2" | 60mm × 43mm (2-3/8"× 1-3/4") |
45mm × 30mm (1-3/4"× 1-1/8") |
6mm (3/16") |
| 2" | 69mm × 49mm (2-3/4"× 1-7/8") |
52mm × 35mm (2"× 1-3/8") |
8mm (5/16") |
絲扣規格
| 規格 Size |
絲扣牙徑 x 長度 Threaded Size |
規格 Size |
絲扣牙徑 x 長度 Threaded Size |
| 1-1/2" | M8 × 25mm | 2" | M10 × 25mm |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 40mm x 20mm (1-5/8" x 3/4") |
40kgs (88 lbs) |
PPP輪 PP on PP Core |
1127-015-29-1 | 1127-015-29-2 | 1127-015-29-4 | 滾珠軸承 Ball Bearing |
60mm (2-3/8") |
活動 39mm 雙煞 66mm Swivel 38mm Swivel W/Total lock 66mm |
| 38mm x 24mm (1-1/2" x 1") |
40 kgs (88 lbs) |
PPR輪 TPR on PP Core |
1127-015-26-1 | 1127-015-26-2 | 1127-015-26-4 | 滾珠軸承 Ball Bearing |
59mm (2-3/8") |
活動 37mm 雙煞 66mm Swivel 37mm Swivel W/Total lock 66mm |
| 42mm x 22mm (1-5/8" x 7/8") |
40 kgs (88 lbs) |
全效輪 Resolute |
1127-015-45-1 | 1127-015-45-2 | 1127-015-45-4 | |||
| 50mm x 23mm (1-5/8" x 7/8") |
50kgs (110 lbs) |
PPP輪 PP on PP Core |
1127-02-29-1 | 1127-02-29-2 | 1127-02-29-4 | 滾珠軸承 Ball Bearing |
71mm (2-3/4") |
活動 45mm 雙煞 77mm Swivel 45mm Swivel W/Total lock 77mm |
| 50mm x 22.5mm (2" x 7/8") |
50 kgs (110 lbs) |
全效輪(平面) Resolute(Flat) |
1127-02-45-1 | 1127-02-45-2 | 1127-02-45-4 | |||
| 50mm x 22mm (2" x 7/8") |
50 kgs (110 lbs) |
全效輪 Resolute |
1127-02-45-1 | 1127-02-45-2 | 1127-02-45-4 | 中管 Plain Bearing |
71mm (2-3/4") |
活動 45mm 雙煞 77mm Swivel 45mm Swivel W/Total lock 77mm |
| 51.5mm x 21mm (2" x 7/8") |
50 kgs (110 lbs) |
PPR輪 TPR on PP Core |
1127-02-26-1 | 1127-02-26-2 | 1127-02-26-4 | 中管 Plain Bearing |
71.8mm (2-7/8") |
活動 45.8mm 雙煞 77mm Swivel 45.8mm Swivel W/Total lock 77mm |
