1115H系列 — 載重彈簧輪系列
屬得貹專利產品，避震，超重負載，多款供選擇。採用超厚板材及高級彈簧，品質、工藝明顯優於市場上同類產品。
特色區
.webp)

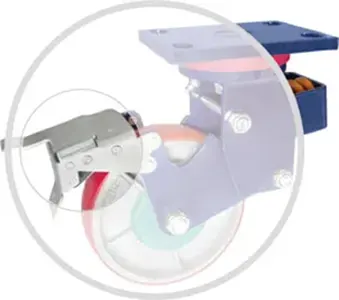

AK煞(For 4" 5" 6" 8")
.webp)
BCD煞(中煞)
(For 10" only)
.webp)
PU輪面可以變化硬度
.webp)
輪子可附金屬防塵蓋
(供選擇)
.webp)
輪子可附塑膠防塵蓋
(供選擇)
特色區
AK煞(For 4" 5" 6" 8")
BCD煞(中煞)(For 10" only)
.webp)
PU輪面可以變化硬度
輪子可附金屬防塵蓋(供選擇)
輪子可附塑膠防塵蓋(供選擇)
輪子選擇
-
鐵芯聚氨酯
-
鐵芯NBR橡膠輪
-
QPU輪
-
EPU輪
-
EQPU輪
-
VPU輪
-
VQPU輪
-
環保牽引NBR
-
鋁芯AQPU
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6" 8" | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常規標準底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140mm (4-11/32" x 5-1/2") |
80 x 105mm(歐規孔距) (3-5/32" x 4-1/8"(European Plate)) |
12 mm (1/2") |
|
| 130 x 165mm (5-1/8" x 6-1/2") |
100 x 130mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159mm (4-1/2" x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
|
| 10" | 130 x 167mm (5-1/8" x 6-9/16") |
85 x 140mm (3-11/32" x 5-1/2") |
12 mm (1/2") |
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6" 8" | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常規標準底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5" 6" 8" | 110 x 140mm (4-11/32" x 5-1/2") |
75 x 110mm(常規標準底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140mm (4-11/32" x 5-1/2") |
80 x 105mm(歐規孔距) (3-5/32" x 4-1/8"(European Plate)) |
12 mm (1/2") |
|
| 130 x 165mm (5-1/8" x 6-1/2") |
100 x 130mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159mm (4-1/2" x 6-1/4") |
73.8 x 129.4mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
|
| 10" | 130 x 167mm (5-1/8" x 6-9/16") |
85 x 140mm (3-11/32" x 5-1/2") |
12 mm (1/2") |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 100mm x 36mm (4" x 1-7/16") |
250 kgs (550 lbs) | 鐵芯聚氨酯 PU on Cast |
1115-H-04-33-1 | 1115-H-04-33-2 | 1115-H-04-33-4 | 滾珠 Ball Bearing |
198mm (7-13/16") |
活動 96mm AK煞 164mm Swivel 96mm Swivel W/AK lock brake 164mm |
| 250 kgs (550 lbs) | 鋁芯AQPU QPU on AL Core |
1115-H-04-87-1 | 1115-H-04-87-2 | 1115-H-04-87-4 | ||||
| 300 kgs (660 lbs) | QPU輪 QPU |
1115-H-04-80-1 | 1115-H-04-80-2 | 1115-H-04-80-4 | ||||
| 100mm x 38mm (4" x 1-1/2") |
200 kgs (440 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1115-H-04-90-1 | 1115-H-04-90-2 | 1115-H-04-90-4 | |||
| 200 kgs (440 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1115-H-04-04-1 | 1115-H-04-04-2 | 1115-H-04-04-4 | ||||
| 125mm x 40mm (5" x 1-9/16") |
250 kgs (550 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1115-H-05-90-1 | 1115-H-05-90-2 | 1115-H-05-90-4 | 滾珠 Ball Bearing |
210mm (8-9/32") |
活動 132mm AK煞 194mm Swivel 132mm Swivel W/AK lock brake 194mm |
| 250 kgs (550 lbs) | 鐵芯聚氨脂 PU on Cast |
1115-H-05-33-1 | 1115-H-05-33-2 | 1115-H-05-33-4 | ||||
| 250 kgs (550 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1115-H-05-04-1 | 1115-H-05-04-2 | 1115-H-05-04-4 | ||||
| 300 kgs (660 lbs) | 鋁芯AQPU QPU on AL Core |
1115-H-05-87-1 | 1115-H-05-87-2 | 1115-H-05-87-4 | ||||
| 300 kgs (660 lbs) | QPU輪 QPU |
1115-H-05-80-1 | 1115-H-05-80-2 | 1115-H-05-80-4 | ||||
| 300 kgs (660 lbs) | EPU輪 EPU |
1115-H-05-78-1 | 1115-H-05-78-2 | 1115-H-05-78-4 | ||||
| 400 kgs (880 lbs) | EQPU輪 EQPU |
1115-H-05-81-1 | 1115-H-05-81-2 | 1115-H-05-81-4 | ||||
| 150mm x 40mm (6" x 1-9/16") |
300 kgs (660 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1115-H-06-90-1 | 1115-H-06-90-2 | 1115-H-06-90-4 | 滾珠 Ball Bearing |
225mm (8-27/32") |
活動 146mm AK煞 200mm Swivel 146mm Swivel W/AK lock brake 200mm |
| 300 kgs (660 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1115-H-06-04-1 | 1115-H-06-04-2 | 1115-H-06-04-4 | ||||
| 150mm x 42mm (6" x 1-5/8") |
300 kgs (660 lbs) | 鐵芯聚氨脂 PU on Cast |
1115-H-06-33-1 | 1115-H-06-33-2 | 1115-H-06-33-4 | |||
| 350 kgs (770 lbs) | 鋁芯AQPU QPU on AL Core |
1115-H-06-87-1 | 1115-H-06-87-2 | 1115-H-06-87-4 | ||||
| 350 kgs (770 lbs) | QPU輪 QPU |
1115-H-06-80-1 | 1115-H-06-80-2 | 1115-H-06-80-4 | ||||
| 350 kgs (770 lbs) | EPU輪 EPU |
1115-H-06-78-1 | 1115-H-06-78-2 | 1115-H-06-78-4 | ||||
| 450 kgs (990 lbs) | EQPU輪 EQPU |
1115-H-06-81-1 | 1115-H-06-81-2 | 1115-H-06-81-4 | ||||
| 450 kgs (990 lbs) | VPU輪 VPU |
1115-H-06-82-1 | 1115-H-06-82-2 | 1115-H-06-82-4 | ||||
| 550 kgs (1210 lbs) | VQPU輪 VQPU |
1115-H-06-83-1 | 1115-H-06-83-2 | 1115-H-06-83-4 | ||||
| 150mm x 46mm (6" x 1-13/16") |
350 kgs (770 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1115-H-06-04-1 | 1115-H-06-04-2 | 1115-H-06-04-4 | |||
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 200mm x 44mm (8" x 1-3/4") |
350 kgs (770 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1115-H-08 -04-1 | 1115-H-08 -04-2 | 1115-H-08 -04-4 | 滾珠 Ball Bearing |
280mm (11-1/32") |
活動 182mm AK煞 254mm Swivel 182mm Swivel W/AK lock brake 254mm |
| 350 kgs (770 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1115-H-08-90-1 | 1115-H-08-90-2 | 1115-H-08-90-4 | ||||
| 200mm x 50mm (8" x 2") |
350 kgs (770 lbs) | 鐵芯聚氨脂 PU on Cast |
1115-H-08-33-1 | 1115-H-08-33-2 | 1115-H-08-33-4 | |||
| 400 kgs (880 lbs) | QPU輪 QPU |
1115-H-08-80-1 | 1115-H-08-80-2 | 1115-H-08-80-4 | ||||
| 400 kgs (880 lbs) | EPU輪 EPU |
1115-H-08-78-1 | 1115-H-08-78-2 | 1115-H-08-78-4 | ||||
| 400 kgs (880 lbs) | 鋁芯AQPU QPU on AL Core |
1115-H-08-87-1 | 1115-H-08-87-2 | 1115-H-08-87-4 | ||||
| 500 kgs (1100 lbs) | EQPU輪 EQPU |
1115-H-08-81-1 | 1115-H-08-81-2 | 1115-H-08-81-4 | ||||
| 500 kgs (1100 lbs) | VPU輪 VPU |
1115-H-08-82-1 | 1115-H-08-82-2 | 1115-H-08-82-4 | ||||
| 600 kgs (1320 lbs) | VQPU輪 VQPU |
1115-H-08-83-1 | 1115-H-08-83-2 | 1115-H-08-83-4 | ||||
| 250mm x 62mm (10" x 2-7/16") |
550 kgs (1210 lbs) | QPU輪 QPU |
1115-H-10-80-1 | 1115-H-10-80-2 | 1115-H-10-80-4 | 滾珠 Ball Bearing |
353mm (13-29/32") |
活動 213mm BCD煞 255mm Swivel 213mm Swivel W/Center lock 255mm |
| 550 kgs (1210 lbs) | VPU輪 VPU |
1115-H-10-82-1 | 1115-H-10-82-2 | 1115-H-10-82-4 | 滾珠 Ball Bearing |
355mm (14") |
||
| 650 kgs (1430 lbs) | VQPU輪 VQPU |
1115-H-10-83-1 | 1115-H-10-83-2 | 1115-H-10-83-4 | 滾珠 Ball Bearing |
355mm (14") |
||
| 250mm x 62mm (10" x 2-7/16") |
400 kgs (880 lbs) | 鐵芯NBR橡膠輪 NBR Rubber on Cast |
1115-H-10-04-1 | 1115-H-10-04-2 | 1115-H-10-04-4 | 滾珠 Ball Bearing |
355mm (14") |
|
| 400 kgs (880 lbs) | 環保牽引NBR輪 Non-marking NBR Rubber on Cast |
1115-H-10-90-1 | 1115-H-10-90-2 | 1115-H-10-90-4 | 滾珠 Ball Bearing |
353mm (13-29/32") |
||
| 254mm x 62mm (10" x 2-7/16") |
500 kgs (1100 lbs) | 鐵芯聚氨脂 PU on Cast |
1115-H-10-33-1 | 1115-H-10-33-2 | 1115-H-10-33-4 | 滾珠 Ball Bearing |
353mm (13-29/32") |
|
