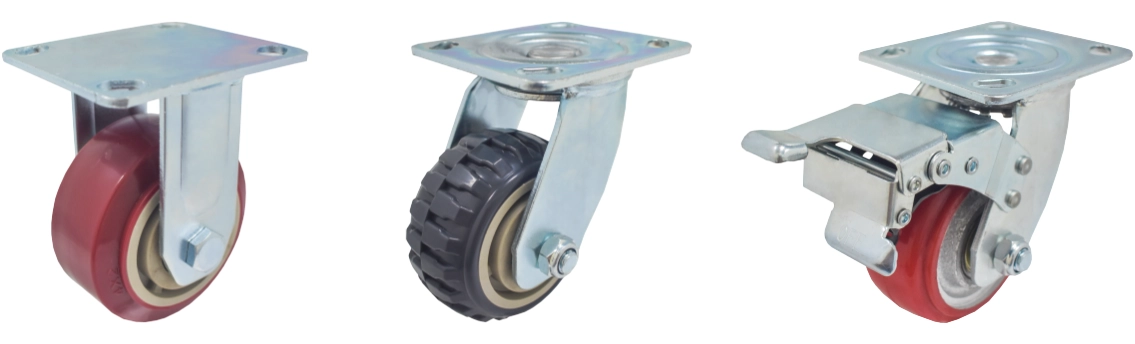

1112-3系列 — 長珠-3系列
高負載且轉動靈活，普遍適用於一般工廠搬運，另可附防塵蓋，屬得貹專利產品，且可有效防止腳輪因灰塵或纏絲而無法轉動，提高腳輪使用壽命。
輪子選擇
-
韓式大紅PPP輪
PPP on Cast -
透明MRC輪
Nylon -
風火PP輪
PP on Cast -
透明CDP輪
CDP -
棗紅PPP輪
PPP on Cast -
大圓弧PPR輪
TPR on PP Core -
韓款PU輪
PU on Cast -
平面W全效輪
W Resolute
底板規格
| 腳輪尺寸 | 底板尺寸 | 底板孔徑 | 安裝尼帽尺寸 |
| 4,5,6,8 | 114 x 102 mm (4-1/2" x 4") |
84.2 x 71.5 mm (3-3/8" ~ 2-7/8") |
M10 |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 100 × 48mm (4" × 1-7/8") |
150kgs (330 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-040-29-1 | 1112-040-29-2 | 1112-040-29-4 | 滾珠軸承 Ball Bearing |
141.5mm (5-5/8") |
活動 90.5mm 側剎 138.5mm AK剎 105mm Swivel 90.5mm Swivel W/Sidebrake 138.5mm AK Total Lock Brake 105mm |
| 100 × 48mm (4" × 1-7/8") |
150 kgs (330 lbs) | 風火PP輪 PP on Cast |
1112-040-29-1 | 1112-040-29-2 | 1112-040-29-4 | |||
| 100 × 48mm (4" × 1-7/8") |
150 kgs (330 lbs) | 棗紅PPP輪 PPP on Cast |
1112-040-29-1 | 1112-040-29-2 | 1112-040-29-4 | |||
| 100 × 48mm (4" × 1-7/8") |
250 kgs (550 lbs) | 韓款PU輪 PU on Cast |
1112-040-33-1 | 1112-040-33-2 | 1112-040-33-4 | |||
| 100 × 32mm (4" × 1-1/4") |
200 kgs (440 lbs) | 透明MRC輪 Nylon |
1112-040-07-1 | 1112-040-07-2 | 1112-040-07-4 | |||
| 100 × 32mm (4" × 1-1/4") |
150 kgs (330 lbs) | 透明CDP輪 CDP |
1112-040-44-1 | 1112-040-44-2 | 1112-040-44-4 | |||
| 100 × 50mm (4" × 2") |
135 kgs (297 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-040-26-1 | 1112-040-26-2 | 1112-040-26-4 | |||
| 100 × 50mm (4" × 2") |
180 kgs (396 lbs) | 平面W全效輪 W Resolute |
1112-040-45-1 | 1112-040-45-2 | 1112-040-45-4 | |||
| 125 × 48mm (5" × 1-7/8") |
180kgs (396 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-050-29-1 | 1112-050-29-2 | 1112-050-29-4 | 滾珠軸承 Ball Bearing |
164mm (6-1/2") |
活動 108mm 側剎 157mm AK剎 126.5mm Swivel 108mm Swivel W/Sidebrake 157mm AK Total Lock Brake 126.5mm |
| 125 × 48mm (5" × 1-7/8") |
180 kgs (396 lbs) | 風火PP輪 PP on Cast |
1112-050-29-1 | 1112-050-29-2 | 1112-050-29-4 | |||
| 125 × 48mm (5" × 1-7/8") |
130 kgs (396 lbs) | 棗紅PPP輪 PPP on Cast |
1112-050-29-1 | 1112-050-29-2 | 1112-050-29-4 | |||
| 125 × 48mm (5" × 1-7/8") |
290 kgs (639 lbs) | 韓款PU輪 PU on Cast |
1112-050-33-1 | 1112-050-33-2 | 1112-050-33-4 | |||
| 125 × 32mm (5" × 1-1/4") |
250 kgs (551 lbs) | 透明MRC輪 Nylon |
1112-050-07-1 | 1112-050-07-2 | 1112-050-07-4 | |||
| 125 × 32mm (5" × 1-1/4") |
200 kgs (440 lbs) | 透明CDP輪 CDP |
1112-050-44-1 | 1112-050-44-2 | 1112-050-44-4 | |||
| 125 × 50mm (5" × 2") |
170 kgs (374 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-050-26-1 | 1112-050-26-2 | 1112-050-26-4 | |||
| 127 × 50mm (4" × 2") |
227 kgs (500 lbs) | 平面W全效輪 W Resolute |
1112-050-45-1 | 1112-050-45-2 | 1112-050-45-4 | |||
| 150 × 48mm (6" × 1-7/8") |
200kgs (440 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | 滾珠軸承 Ball Bearing |
189mm (7-1/2") |
活動 128.5mm 側剎 157mm AK剎 128.5mm Swivel 128.5mm Swivel W/Sidebrake 157mm AK Total Lock Brake 128.5mm |
| 150 × 48mm (6" × 1-7/8") |
200 kgs (440 lbs) | 風火PP輪 PP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | |||
| 150 × 48mm (6" × 1-7/8") |
200 kgs (440 lbs) | 棗紅PPP輪 PPP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | |||
| 150 × 48mm (6" × 1-7/8") |
330 kgs (727 lbs) | 韓款PU輪 PU on Cast |
1112-060-33-1 | 1112-060-33-2 | 1112-060-33-4 | |||
| 150 × 32mm (6" × 1-1/4") |
350 kgs (771 lbs) | 透明WMRC輪 Nylon |
1112-060-07-1 | 1112-060-07-2 | 1112-060-07-4 | |||
| 150 × 32mm (6" × 1-1/4") |
250 kgs (551 lbs) | 透明WCDP輪 WCDP |
1112-060-44-1 | 1112-060-44-2 | 1112-060-44-4 | |||
| 150 × 50mm (6" × 2") |
200 kgs (440 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-060-26-1 | 1112-060-26-2 | 1112-060-26-4 | |||
| 151 × 50mm (8" × 2") |
270 kgs (596 lbs) | 平面W全效輪 W Resolute |
1112-060-45-1 | 1112-060-45-2 | 1112-060-45-4 | |||
| 200 × 48mm (8" × 1-7/8") |
220kgs (485 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-080-29-1 | 1112-080-29-2 | 1112-080-29-4 | 滾珠軸承 Ball Bearing |
237mm (9-3/8") |
活動 150mm 側剎 157mm AK剎 150mm Swivel 150mm Swivel W/Sidebrake 157mm AK Total Lock Brake 150mm |
| 200 × 48mm (8" × 1-7/8") |
220 kgs (485 lbs) | 風火PP輪 PP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | |||
| 200 × 48mm (8" × 1-7/8") |
220 kgs (485 lbs) | 棗紅PPP輪 PPP on Cast |
1112-080-29-1 | 1112-080-29-2 | 1112-080-29-4 | |||
| 200 × 48mm (8" × 1-7/8") |
380 kgs (837 lbs) | 韓款PU輪 PU on Cast |
1112-080-33-1 | 1112-080-33-2 | 1112-080-33-4 | |||
| 200 × 32mm (8" × 1-1/4") |
400 kgs (881 lbs) | 透明MRC輪 Nylon |
1112-080-07-1 | 1112-080-07-2 | 1112-080-07-4 | |||
| 200 × 32mm (8" × 1-1/4") |
300 kgs (661 lbs) | 透明WCDP輪 WCDP |
1112-080-44-1 | 1112-080-44-2 | 1112-080-44-4 | |||
| 200 × 50mm (8" × 2") |
270 kgs (595 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-080-26-1 | 1112-080-26-2 | 1112-080-26-4 | |||
| 202 × 50mm (8" × 2") |
380 kgs (661 lbs) | 平面W全效輪 W Resolute |
1112-080-45-1 | 1112-080-45-2 | 1112-080-45-4 | |||
