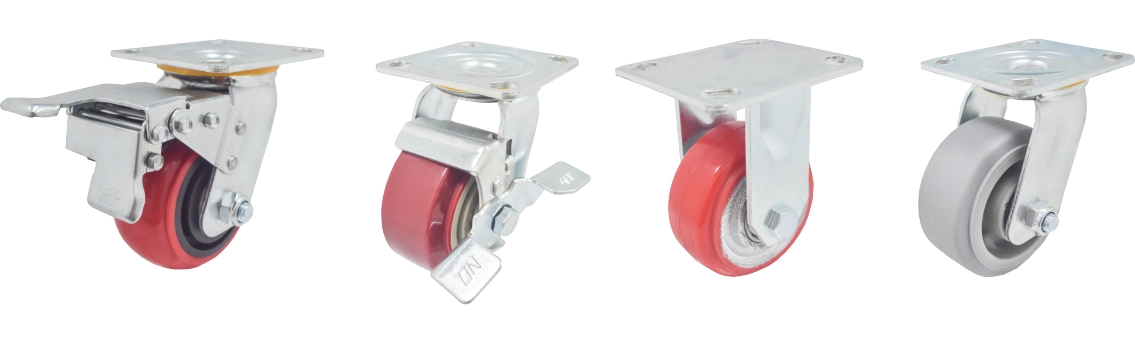

1112-2系列 — 長珠-2系列
高負載且轉動靈活，普遍適用於一般工廠搬運，另可附防塵蓋，屬得貹專利產品，且可有效防止腳輪因灰塵或纏絲而無法轉動，提高腳輪使用壽命。
輪子選擇
-

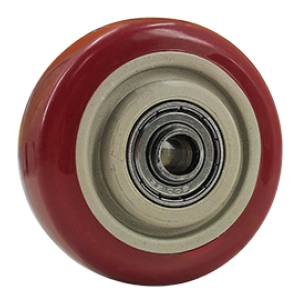

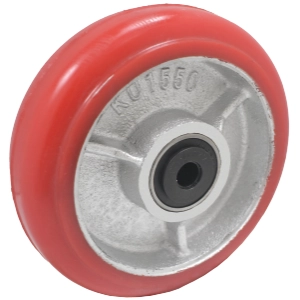

韓式大紅PPP輪
PPP on Cast -

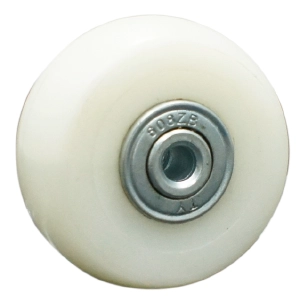

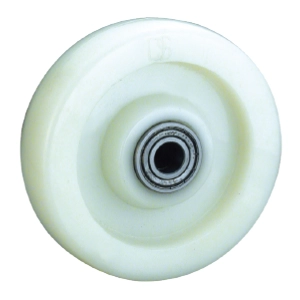

透明MRC輪
Nylon -
風火PP輪
PP on Cast -

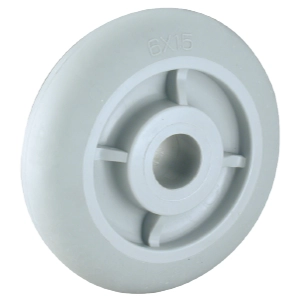

透明CDP輪
CDP -

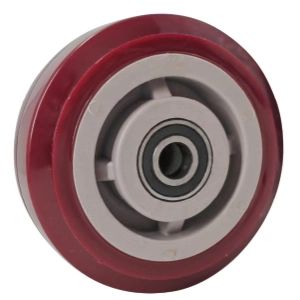

棗紅PPP輪
PPP on Cast -

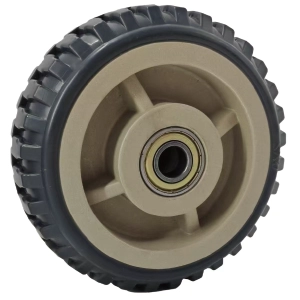

大圓弧PPR輪
TPR on PP Core -
韓款PU輪
PU on Cast -

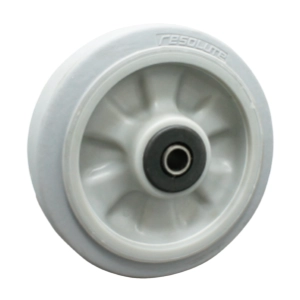

平面W全效輪
W Resolute
底板規格
| 腳輪尺寸 | 底板尺寸 | 底板孔徑 | 安裝尼帽尺寸 |
| 4,5,6,8 | 100 x 95.5 mm (4"x 3-3/4") |
70.3 x 81.4 mm (2-3/4" ~ 3-1/4") |
M12 |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 100 × 48mm (4" × 1-7/8") |
150kgs (330 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-040-29-1 | 1112-040-29-2 | 1112-040-29-4 | 滾珠軸承 Ball Bearing |
136mm (5-3/8") |
活動 88.5mm 側剎 137.7mm AK剎 112mm Swivel 88.5mm Swivel W/Sidebrake 137.7mm AK Total Lock Brake 112mm |
| 100 × 48mm (4" × 1-7/8") |
150 kgs (330 lbs) | 風火PP輪 PP on Cast |
1112-040-29-1 | 1112-040-29-2 | 1112-040-29-4 | |||
| 100 × 48mm (4" × 1-7/8") |
150 kgs (330 lbs) | 棗紅PPP輪 PPP on Cast |
1112-040-29-1 | 1112-040-29-2 | 1112-040-29-4 | |||
| 100 × 48mm (4" × 1-7/8") |
250 kgs (550 lbs) | 韓款PU輪 PU on Cast |
1112-040-33-1 | 1112-040-33-2 | 1112-040-33-4 | |||
| 100 × 32mm (4" × 1-1/4") |
200 kgs (440 lbs) | 透明MRC輪 Nylon |
1112-040-07-1 | 1112-040-07-2 | 1112-040-07-4 | |||
| 100 × 32mm (4" × 1-1/4") |
150 kgs (330 lbs) | 透明CDP輪 CDP |
1112-040-44-1 | 1112-040-44-2 | 1112-040-44-4 | |||
| 100 × 50mm (4" × 2") |
135 kgs (297 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-040-26-1 | 1112-040-26-2 | 1112-040-26-4 | |||
| 100 × 50mm (4" × 2") |
180 kgs (396 lbs) | 平面W全效輪 W Resolute |
1112-040-45-1 | 1112-040-45-2 | 1112-040-45-4 | |||
| 125 × 48mm (5" × 1-7/8") |
180kgs (396 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-050-29-1 | 1112-050-29-2 | 1112-050-29-4 | 滾珠軸承 Ball Bearing |
162mm (6-3/8") |
活動 106mm 側剎 139.2mm AK剎 116mm Swivel 106mm Swivel W/Sidebrake 139.2mm AK Total Lock Brake 116mm |
| 125 × 48mm (5" × 1-7/8") |
180 kgs (396 lbs) | 風火PP輪 PP on Cast |
1112-050-29-1 | 1112-050-29-2 | 1112-050-29-4 | |||
| 125 × 48mm (5" × 1-7/8") |
130 kgs (396 lbs) | 棗紅PPP輪 PPP on Cast |
1112-050-29-1 | 1112-050-29-2 | 1112-050-29-4 | |||
| 125 × 48mm (5" × 1-7/8") |
290 kgs (639 lbs) | 韓款PU輪 PU on Cast |
1112-050-33-1 | 1112-050-33-2 | 1112-050-33-4 | |||
| 125 × 32mm (5" × 1-1/4") |
250 kgs (551 lbs) | 透明MRC輪 Nylon |
1112-050-07-1 | 1112-050-07-2 | 1112-050-07-4 | |||
| 125 × 32mm (5" × 1-1/4") |
200 kgs (440 lbs) | 透明CDP輪 CDP |
1112-050-44-1 | 1112-050-44-2 | 1112-050-44-4 | |||
| 125 × 50mm (5" × 2") |
170 kgs (374 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-050-26-1 | 1112-050-26-2 | 1112-050-26-4 | |||
| 127 × 50mm (4" × 2") |
227 kgs (500 lbs) | 平面W全效輪 W Resolute |
1112-050-45-1 | 1112-050-45-2 | 1112-050-45-4 | |||
| 150 × 48mm (6" × 1-7/8") |
200kgs (440 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | 滾珠軸承 Ball Bearing |
190mm (7-1/2") |
活動 123.5mm 側剎 150.8mm AK剎 123.5mm Swivel 123.5mm Swivel W/Sidebrake 150.8mm AK Total Lock Brake 123.5mm |
| 150 × 48mm (6" × 1-7/8") |
200 kgs (440 lbs) | 風火PP輪 PP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | |||
| 150 × 48mm (6" × 1-7/8") |
200 kgs (440 lbs) | 棗紅PPP輪 PPP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | |||
| 150 × 48mm (6" × 1-7/8") |
330 kgs (727 lbs) | 韓款PU輪 PU on Cast |
1112-060-33-1 | 1112-060-33-2 | 1112-060-33-4 | |||
| 150 × 32mm (6" × 1-1/4") |
350 kgs (771 lbs) | 透明WMRC輪 Nylon |
1112-060-07-1 | 1112-060-07-2 | 1112-060-07-4 | |||
| 150 × 32mm (6" × 1-1/4") |
250 kgs (551 lbs) | 透明WCDP輪 WCDP |
1112-060-44-1 | 1112-060-44-2 | 1112-060-44-4 | |||
| 150 × 50mm (6" × 2") |
200 kgs (440 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-060-26-1 | 1112-060-26-2 | 1112-060-26-4 | |||
| 151 × 50mm (8" × 2") |
270 kgs (596 lbs) | 平面W全效輪 W Resolute |
1112-060-45-1 | 1112-060-45-2 | 1112-060-45-4 | |||
| 200 × 48mm (8" × 1-7/8") |
220kgs (485 lbs) | 韓式大紅PPP輪 PPP on Cast |
1112-080-29-1 | 1112-080-29-2 | 1112-080-29-4 | 滾珠軸承 Ball Bearing |
240.5mm (9-1/2") |
活動 158mm 側剎 158mm AK剎 158mm Swivel 158mm Swivel W/Sidebrake 158mm AK Total Lock Brake 158mm |
| 200 × 48mm (8" × 1-7/8") |
220 kgs (485 lbs) | 風火PP輪 PP on Cast |
1112-060-29-1 | 1112-060-29-2 | 1112-060-29-4 | |||
| 200 × 48mm (8" × 1-7/8") |
220 kgs (485 lbs) | 棗紅PPP輪 PPP on Cast |
1112-080-29-1 | 1112-080-29-2 | 1112-080-29-4 | |||
| 200 × 48mm (8" × 1-7/8") |
380 kgs (837 lbs) | 韓款PU輪 PU on Cast |
1112-080-33-1 | 1112-080-33-2 | 1112-080-33-4 | |||
| 200 × 32mm (8" × 1-1/4") |
400 kgs (881 lbs) | 透明MRC輪 Nylon |
1112-080-07-1 | 1112-080-07-2 | 1112-080-07-4 | |||
| 200 × 32mm (8" × 1-1/4") |
300 kgs (661 lbs) | 透明WCDP輪 WCDP |
1112-080-44-1 | 1112-080-44-2 | 1112-080-44-4 | |||
| 200 × 50mm (8" × 2") |
270 kgs (595 lbs) | 大圓弧PPR 輪 TPR on PP Core |
1112-080-26-1 | 1112-080-26-2 | 1112-080-26-4 | |||
| 202 × 50mm (8" × 2") |
380 kgs (661 lbs) | 平面W全效輪 W Resolute |
1112-080-45-1 | 1112-080-45-2 | 1112-080-45-4 | |||
