1111-TC系列 — 高級5x2系列
專門為工具箱用的高荷重輪，外型設計美觀、耐用。
特色區
反珠碗
前煞(雙踏)
前煞(單踏)

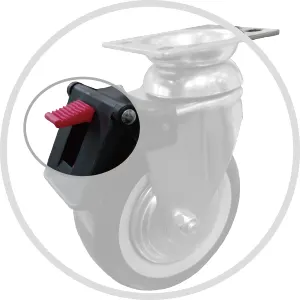

側煞
特色區
反珠碗
前煞(雙踏)
前煞(單踏)
側煞
輪子選擇
塑料輪
超級人造膠
風火輪
塑料輪(三風型)
HDR輪
底板規格
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高級架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 2 | 105 x 115 mm (4-1/8" x 4-1/2") | 70 x 85 mm (大底板)(Big Plate) (2-5/8"~3" x 3"~3-5/8") |
9.5 mm (3/8") |
底板規格
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高級架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") | 45 x 75 mm (高級架底板)(Plate) (1-3/4" x 3") |
6.35 mm (1/4") |
| 2 | 105 x 115 mm (4-1/8" x 4-1/2") | 70 x 85 mm (大底板)(Big Plate) (2-5/8"~3" x 3"~3-5/8") |
9.5 mm (3/8") |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 偏心距 | ||
| 固定 | 活動 | 煞車 | ||||||
| 100mm x 48mm (4" x 1-7/8") |
80kgs (176 lbs) |
塑料輪 PP |
1111-TC-04-29-1 | 1111-TC-04-29-2 | 1111-TC-04-29-4 | 中管 Plain Bearing |
高級架底板類總高 (側煞/單踏) Plate OAH: 138.5mm (5-7/16") 大底板類總高 (側煞/單踏) Big Plate OAH: 139.5mm (5-1/2") |
活動 91mm 側煞 94mm 前煞(單踏) 118.5mm Swivel 91mm Swivel W/Side Brake 94mm Swivel W/Center lock 118.5mm (single pedal) |
| 100mm x 50mm (4" x 2") |
130kgs (286 lbs) |
HDR輪 HDR |
1111-TC-04-74-1 | 1111-TC-04-74-2 | 1111-TC-04-74-4 | 滾珠 Ball Bearing |
||
| 125mm x 49mm (5" x 1-15/16") |
100kgs (220 lbs) |
塑料輪 PP |
1111-TC-05-29-1 | 1111-TC-05-29-2 | 1111-TC-05-29-4 | 中管 Plain Bearing |
高級架底板類總高(側煞) Plate OAH: 158mm (6-1/4") 高級架底板+反珠碗類總高 (單踏/雙踏) Plate with extra clerance OAH: 176.5mm (6-15/16") 大底板類總高(單踏/雙踏) Big Plate OAH: 165mm (6-1/2") |
活動 97.5mm 側煞 97.5mm 前煞(單踏) 118.5mm 前煞(雙踏) 132.5mm Swivel 97.5mm Swivel W/Side Brake 97.5mm Swivel W/Center lock 118.5mm (single pedal) Swivel W/Center lock 132.5mm (double pedals |
| 100kgs (220 lbs) |
風火輪 Designed PP Wheel |
1111-TC-05-65-1 | 1111-TC-05-65-2 | 1111-TC-05-65-4 | 中管 Plain Bearing |
|||
| 100kgs (220 lbs) |
塑料輪(三風型) PP |
1111-TC-05-73-1 | 1111-TC-05-73-2 | 1111-TC-05-73-4 | 中管 Plain Bearing |
|||
| 125mm x 50mm (5" x 2") |
90kgs (198 lbs) |
超級人造膠 TPR on PP Core |
1111-TC-05-26-1 | 1111-TC-05-26-2 | 1111-TC-05-26-4 | 滾珠 Ball Bearing A珠軸承 Flanged Ball Bearing |
||
| 130kgs (286 lbs) |
HDR輪 HDR |
1111-TC-05-74-1 | 1111-TC-05-74-2 | 1111-TC-05-74-4 | 滾珠 Ball Bearing |
150mm x 50mm (6" x 2") |
130kgs (286 lbs) |
超級人造膠 TPR on PP Core |
1111-TC-06-26-1 | 1111-TC-06-26-2 | 1111-TC-06-26-4 | 滾珠 Ball Bearing |
高級架底板+反珠碗類總高(雙踏) Plate with extra clerance OAH:201mm (7-15/16") 大底板類總高(雙踏) Big Plate OAH: 187mm (7-3/8") |
活動 111.5mm 前煞(雙踏) 132.5mm Swivel 111.5mm Swivel W/Center lock 132.5mm (double pedals) |
| 130kgs (286 lbs) |
HDR輪 HDR |
1111-TC-06-74-1 | 1111-TC-06-74-2 | 1111-TC-06-74-4 | 滾珠 Ball Bearing |
|||
