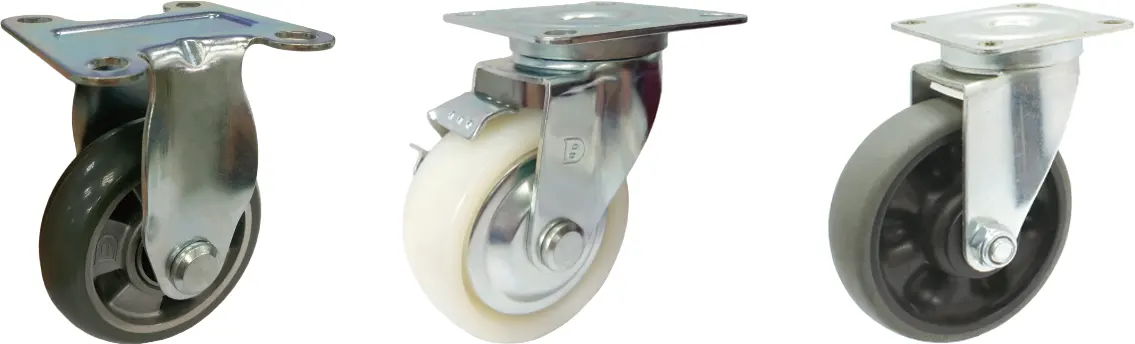

1108-M系列 — 日式輪系列(中型)
轉動靈活寧靜, 有雙煞與側煞可供選擇。
特色區

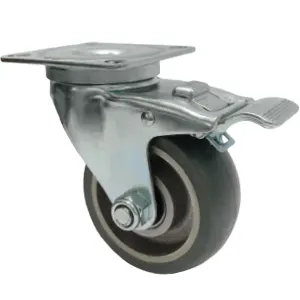

雙煞

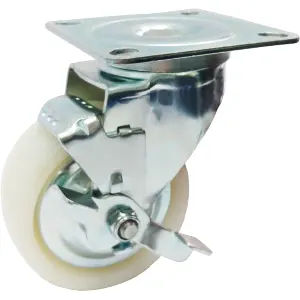

側煞(限4",136.5mm總高)

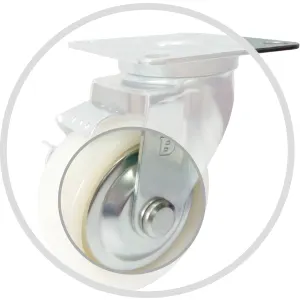

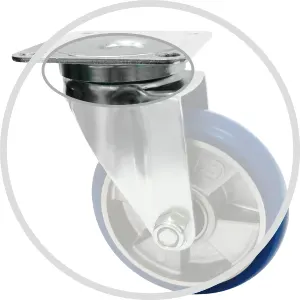

波盤防塵蓋
可附金屬防塵蓋(供選擇)
特色區
雙煞
側煞(限4",136.5mm總高)
波盤防塵蓋
可附金屬防塵蓋(供選擇)
輪子選擇
鋁芯AQPU
鋁芯橡膠輪
鋁芯QQ橡膠輪
尼龍輪
W 全效輪
活動底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5"活動底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") | 70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
| 6" 8"活動底板 6" 8" Plate |
101 x 101 mm (4" x 4") | 78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
固定底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5"固定底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") | 70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
活動底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5"活動底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") |
70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5"活動底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") |
70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
| 6" 8"活動底板 6" 8" Plate |
101 x 101 mm (4" x 4") |
78 x 78 mm (3-1/16" x 3-1/16") |
10 mm (3/8") |
固定底板規格
| 編號 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 4" 5"固定底板 4" 5" Plate |
92 x 92 mm (3-5/8" x 3-5/8") |
70 x 70 mm (2-3/4" x 2-3/4") |
8 mm (5/16") |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 偏心距 | ||
| 固定 | 活動 | 煞車 | ||||||
| 100mm x 32mm (4" x 1-1/4") |
160 kgs (352 lbs) |
尼龍輪 Nylon |
1108-M-04-07-1 | 1108-M-04-07-2 | 1108-M-04-07-4 (Total lock 雙煞) |
滾珠 Ball Bearing |
134.5mm (5-1/4") |
活動 85.5mm 雙煞 117mm Swivel 85.5mm Swivel W/Total Lock Brake 117mm |
| 中管 Plain Bearing |
||||||||
| 140 kgs (308 lbs) |
鋁芯QQ橡膠輪 Recilent rubber on AL Core |
1108-M-04-89-1 | 1108-M-04-89-2 | 1108-M-04-89-4 (Total lock 雙煞) |
滾珠 Ball Bearing |
|||
| 140 kgs (308 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-04-87-1 | 1108-M-04-87-2 | 1108-M-04-87-4 (Total lock 雙煞) |
||||
| 100mm x 36mm (4" x 1-7/16") |
140 kgs (308 lbs) |
W全效輪 W Resolute Wheel |
1108-M-04(36)-64-1 | 1108-M-04(36)-64-2 | 1108-M-04(36)-64-4 (Total lock 雙煞) |
滾珠 Ball Bearing |
134.5mm (5-1/4") |
活動 85.5mm 雙煞 117mm Swivel 85.5mm Swivel W/Total Lock Brake 117mm |
| 160 kgs (352 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-04(36)-87-1 | 1108-M-04(36)-87-2 | 1108-M-04(36)-87-4 (Total lock 雙煞) |
||||
| 100mm x 40mm (4" x 1-9/16") |
160 kgs (352 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-04(40)-87-1 | 1108-M-04(40)-87-2 | 1108-M-04(40)-87-4 (Total lock 雙煞) |
|||
| 160 kgs (352 lbs) |
鋁芯QQ橡膠輪 Recilent rubber on AL Core |
1108-M-04(40)-89-1 | 1108-M-04(40)-89-2 | 1108-M-04(40)-89-4 (Total lock 雙煞) |
||||
| 160 kgs (352 lbs) |
鋁芯橡膠輪 Rubber on AL Core |
1108-M-04(40)-22-1 | 1108-M-04(40)-22-2 | 1108-M-04(40)-22-4 (Total lock 雙煞) |
||||
| 100mm x 32mm (4" x 1-1/4") |
160 kgs (352 lbs) |
尼龍輪 Nylon |
1108-M-04-07-1 | 1108-M-04-07-2 | 1108-M-04-07-4 (Side Brake 側煞) |
滾珠 Ball Bearing |
136.5mm (5-3/8") |
活動 93.5mm 側煞 93.5mm Swivel 93.5mm Swivel W/Side Brake 93.5mm |
| 中管 Plain Bearing |
||||||||
| 140 kgs (308 lbs) |
鋁芯QQ橡膠輪 Recilent rubber on AL Core |
1108-M-04-89-1 | 1108-M-04-89-2 | 1108-M-04-89-4 (Side Brake 側煞) |
滾珠 Ball Bearing |
|||
| 140 kgs (308 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-04-87-1 | 1108-M-04-87-2 | 1108-M-04-87-4 (Side Brake 側煞) |
||||
| 100mm x 36mm (4" x 1-7/16") |
140 kgs (308 lbs) |
W全效輪 W Resolute Wheel |
1108-M-04(36)-64-1 | 1108-M-04(36)-64-2 | 1108-M-04(36)-64-4 (Side Brake 側煞) |
滾珠 Ball Bearing |
136.5mm (5-3/8") |
活動 93.5mm 側煞 93.5mm Swivel 93.5mm Swivel W/Side Brake 93.5mm |
| 160 kgs (352 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-04(36)-87-1 | 1108-M-04(36)-87-2 | 1108-M-04(36)-87-4 (Side Brake 側煞) |
||||
| 100mm x 40mm (4" x 1-9/16") |
160 kgs (352 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-04(40)-87-1 | 1108-M-04(40)-87-2 | 1108-M-04(40)-87-4 (Side Brake 側煞) |
|||
| 160 kgs (352 lbs) |
鋁芯QQ橡膠輪 Recilent rubber on AL Core |
1108-M-04(40)-89-1 | 1108-M-04(40)-89-2 | 1108-M-04(40)-89-4 (Side Brake 側煞) |
||||
| 160 kgs (352 lbs) |
鋁芯橡膠輪 Rubber on AL Core |
1108-M-04(40)-22-1 | 1108-M-04(40)-22-2 | 1108-M-04(40)-22-4 (Side Brake 側煞) |
||||
| 125mm x 31mm (5" x 1-1/4") |
160 kgs (352 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-05-87-1 | 1108-M-05-87-2 | 1108-M-05-87-4 (Total lock 雙煞) |
滾珠 Ball Bearing |
159.5mm (6-1/4") |
活動 99.5mm 雙煞 117mm Swivel 99.5mm Swivel W/Total Lock Brake 117mm |
| 150 kgs (330 lbs) |
鋁芯QQ橡膠輪 Recilent rubber on AL Core |
1108-M-05-89-1 | 1108-M-05-89-2 | 1108-M-05-89-4 (Total lock 雙煞) |
||||
| 125mm x 38mm (5" x 1-1/2") |
160 kgs (352 lbs) |
W全效輪 W Resolute Wheel |
1108-M-05(38)-64-1 | 1108-M-05(38)-64-2 | 1108-M-05(38)-64-4 (Total lock 雙煞) |
|||
| 160 kgs (352 lbs) |
尼龍輪 Nylon |
1108-M-05(38)-07-1 | 1108-M-05(38)-07-2 | 1108-M-05(38)-07-4 (Total lock 雙煞) |
中管 Plain Bearing |
|||
| 125mm x 40mm (5" x 1-9/16") |
180 kgs (396 lbs) |
鋁芯QQ橡膠輪 Recilent rubber on AL Core |
1108-M-05(40)-89-1 | 1108-M-05(40)-89-2 | 1108-M-05(40)-89-4 (Total lock 雙煞) |
滾珠 Ball Bearing |
159.5mm (6-1/4") |
活動 99.5mm 雙煞 117mm Swivel 99.5mm Swivel W/Total Lock Brake 117mm |
| 180 kgs (396 lbs) |
鋁芯橡膠輪 Rubber on AL Core |
1108-M-05(40)-22-1 | 1108-M-05(40)-22-2 | 1108-M-05(40)-22-4 (Total lock 雙煞) |
||||
| 180 kgs (396 lbs) |
鋁芯AQPU QPU on AL Core |
1108-M-05(40)-87-1 | 1108-M-05(40)-87-2 | 1108-M-05(40)-87-4 (Total lock 雙煞) |
||||
| 180 kgs (396 lbs) |
尼龍輪 Nylon |
1108-M-05(40)-07-1 | 1108-M-05(40)-07-2 | 1108-M-05(40)-07-4 (Total lock 雙煞) |
||||
