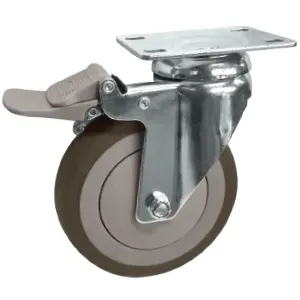

1106系列 — 儀器系列(TW)
採用特別腳架荷重結構設計, 超大波盤結構轉動靈活, 剎車制動效果良好, 剎車採用加纖塑料 雙踏板,彈片採用高張力鋼制成, 不會因為長期使用而變形。
特色區
儀器新式固定架
(諮詢工廠)
90度定向剎車架
180度定向剎車架
尼龍雙踏板
尼龍雙踏板(長踏板)
角鐵底板
特色區
儀器新式固定架(諮詢工廠)
90度定向剎車架
180度定向剎車架
尼龍雙踏板
尼龍雙踏板(長踏板)
角鐵底板
輪子選擇
高科技耐磨聚氨酯
超級人造膠(514)
尼龍輪
WMRC輪
WPP輪
W超級人造膠
NPPR輪
鋁芯橡膠輪
超級人造膠(515)
鋁芯AQPU
橡膠輪
塑料輪
導電輪
耐高溫輪
W 全效輪
全效輪(514)
WHDR輪
CPD輪
藍色彈力輪
超級人造膠(大圓弧)
全效輪(大圓弧)
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (高級架底板) (1-3/4" x 3") |
6.35mm (1/4") |
| 2 | 72 x 91 mm (2-13/16" x 3-19/32") |
53 x 72 mm (醫療/儀器架底板) (2-1/8" x 2-7/8") |
6.35mm (1/4") |
| 3 | 77 x 66.5 mm (3" x 2-5/8") |
59 x 49 mm (TW) 2-5/16" x 1-15/16" |
6.35mm (1/4") |
| 4 | 69 x 96 mm (2-23/32" x 3-25/32") |
49 x 74.5 mm (斜孔底板) (1-15/16" x 2-15/16") |
8mm (5/16") |
| 5 | 93 x 110 mm (3"-5/8" x 4-3/8") |
70 x 85 mm (重型架底板) 2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate) |
9.5mm (3/8") |
插桿規格
| 規格 Size |
插桿直徑 x 長度 Diameter x Length |
規格 Size |
插桿直徑 x 長度 Diameter x Length |
| 3"~6" | 11 x 38 mm (TW) | 3"~6" | 21.9 x 56mm (TW) 0.862" diameter x 2-3/16" |
| 3"~6" | 27 x 63 mm (TW) 1-1/16" diameter x 2-31/64" |
3"~6" | 28 x 45mm (TW) 1-7/64" diameter x 1-49/64" |
絲扣規格
| 規格 Size |
絲扣牙徑 x 長度 Threaded Size |
規格 Size |
絲扣牙徑 x 長度 Threaded Size |
| 3"~6" | 3/8-16UNC x 32mm (TW) | 3"~6" | 1/2-12UNC x 32mm (TW) |
| 3"~6" | 5/8-11UNC x 32mm (TW) | 3"~6" | M12-1.75 x 32mm (TW) |
空鉚規格
| 規格 Size |
孔徑 Centre Hole |
規格 Size |
孔徑 Centre Hole |
| 3"~6" | 10.5 mm (TW)(for 3/8" & M10 shaft) | 3"~6" | 12.5 mm (TW)(for M12 shaft) |
| 3"~6" | 13mm (TW)(for 1/2" shaft) |
角鐵底板規格
| 2孔規格 Two Holes Specification | 3孔規格 Three Holes Specification |
 |
 |
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (高級架底板) (1-3/4" x 3") |
6.35mm (1/4") |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 1 | 69 x 96 mm (2-23/32" x 3-25/32") |
45 x 75 mm (高級架底板) (1-3/4" x 3") |
6.35mm (1/4") |
| 2 | 72 x 91 mm (2-13/16" x 3-19/32") |
53 x 72 mm (醫療/儀器架底板) (2-1/8" x 2-7/8") |
6.35mm (1/4") |
| 3 | 77 x 66.5 mm (3" x 2-5/8") |
59 x 49 mm (TW) 2-5/16" x 1-15/16" |
6.35mm (1/4") |
| 4 | 69 x 96 mm (2-23/32" x 3-25/32") |
49 x 74.5 mm (斜孔底板) (1-15/16" x 2-15/16") |
8mm (5/16") |
| 5 | 93 x 110 mm (3"-5/8" x 4-3/8") |
70 x 85 mm (重型架底板) 2-5/8"~3" x 3"~3-5/8" (Heavy Duty Plate) |
9.5mm (3/8") |
插桿規格
| 規格 Size |
插桿直徑 x 長度 Diameter x Length |
規格 Size |
插桿直徑 x 長度 Diameter x Length |
| 3"~6" | 11 x 38 mm (TW) | 3"~6" | 21.9 x 56mm (TW) 0.862" diameter x 2-3/16" |
| 3"~6" | 27 x 63 mm (TW) 1-1/16" diameter x 2-31/64" |
3"~6" | 28 x 45mm (TW) 1-7/64" diameter x 1-49/64" |
絲扣規格
| 規格 Size |
絲扣牙徑 x 長度 Threaded Size |
規格 Size |
絲扣牙徑 x 長度 Threaded Size |
| 3"~6" | 3/8-16UNC x 32mm (TW) | 3"~6" | 1/2-12UNC x 32mm (TW) |
| 3"~6" | 5/8-11UNC x 32mm (TW) | 3"~6" | M12-1.75 x 32mm (TW) |
空鉚規格
| 規格 Size |
孔徑 Centre Hole |
規格 Size |
孔徑 Centre Hole |
| 3"~6" | 10.5 mm (TW)(for 3/8" & M10 shaft) | 3"~6" | 12.5 mm (TW)(for M12 shaft) |
| 3"~6" | 13mm (TW)(for 1/2" shaft) |
角鐵底板規格
| 2孔規格 Two Holes Specification | 3孔規格 Three Holes Specification |
|
|
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 75mm x 24mm (3" x 1") |
40 kgs (88 lbs) |
超級人造膠 TPR on PP Core |
1106-R-03-75-1 | 1106-R-03-75-2 | 1106-R-03-75-4 | 滾珠 Ball Bearing |
底板類總高 Plate Version OAH: 112mm (4-7/16") 絲扣類總高 Threaded Stem OAH: 113mm (4-29/64") 插桿類總高 Cylindrical Stem OAH: 110mm (4-21/64") 兩孔角鐵底板總高 Two holes angle bar plate OAH: 110mm (4-21/64") 三孔角鐵底板總高 Three holes angle bar plate OAH: 139mm (5-15/32") |
活動 74mm |
| 50 kgs (110 lbs) |
全效輪 Resolute |
1106-R-03-68-1 | 1106-R-03-68-2 | 1106-R-03-68-4 | ||||
| 75mm x 32mm (3"-1-1/4") |
90 kgs (198 lbs) |
超級人造膠 TPR on PP Core |
1106-03-75-1 | 1106-03-75-2 | 1106-03-75-4 | 中管 Plain Bearing 滾珠 Ball Bearing |
||
| 160 kgs (352 lbs) |
鋁芯AQPU QPU on AL Core |
1106-03-87-1 | 1106-03-87-2 | 1106-03-87-4 | 滾珠 Ball Bearing |
|||
| 90 kgs (198 lbs) |
W超級人造膠 WPPR |
1106-03-47-1 | 1106-03-47-2 | 1106-03-47-4 | ||||
| 90 kgs (198 lbs) |
全效輪 Resolute |
1106-03-68-1 | 1106-03-68-2 | 1106-03-68-4 | ||||
| 110 kgs (250 lbs) |
W全效輪 W Resolute |
1106-03-48-1 | 1106-03-48-2 | 1106-03-48-4 | ||||
| 80 kgs (175 lbs) |
導電輪 E-conductive |
1106-03-17-1 | 1106-03-17-2 | 1106-03-17-4 | ||||
| 160 kgs (352 lbs) |
WMRC輪 WMRC |
1106-03-45-1 | 1106-03-45-2 | 1106-03-45-4 | ||||
| 70 kgs (155 lbs) |
橡膠輪 Rubber | 1106-03-06-1 | 1106-03-06-2 | 1106-03-06-4 | 中管 Plain Bearing |
|||
| 90 kgs (198 lbs) |
塑料輪 PP |
1106-03-29-1 | 1106-03-29-2 | 1106-03-29-4 | ||||
| 100mm x 24mm (4" x 1") |
50 kgs (110 lbs) |
超級人造膠 TPR on PP Core |
1106-R-04-75-1 | 1106-R-04-75-2 | 1106-R-04-75-4 | 滾珠 Ball Bearing |
底板類總高 Plate Version OAH: 137mm (5-25/64") 絲扣類總高 Threaded Stem OAH: 138mm (5-7/16") 插桿類總高 Cylindrical Stem OAH: 135mm (5-5/16") 兩孔角鐵底板總高 Two holes angle bar plate OAH: 136mm (5-23/64") 三孔角鐵底板總高 Three holes angle bar plate OAH: 155mm (6-7/64") |
活動 89mm |
| 55 kgs (121 lbs) |
全效輪 Resolute |
1106-R-04-68-1 | 1106-R-04-68-2 | 1106-R-04-68-4 | ||||
| 100mm x 32mm (4" x 1-1/4") |
120kgs (265 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1106-04-31-1 | 1106-04-31-2 | 1106-04-31-4 | 滾珠 Ball Bearing 中管 Plain Bearing |
||
| 100kgs (220 lbs) |
超級人造膠 TPR on PP Core |
1106-04-75-1 | 1106-04-75-2 | 1106-04-75-4 | ||||
| 80kgs (175 lbs) |
超級人造膠(大圓弧) TPR on PP Core (Donut) |
1106-04-110-1 | 1106-04-110-2 | 1106-04-110-4 | ||||
| 90kgs (198 lbs) |
全效輪(大圓弧) Resolute (Donut) |
1106-04-111-1 | 1106-04-111-2 | 1106-04-111-4 | ||||
| 125kgs (275 lbs) |
全效輪 Resolute |
1106-04-68-1 | 1106-04-68-2 | 1106-04-68-4 | 滾珠 Ball Bearing |
|||
| 80kgs (176 lbs) |
導電輪 E-conductive |
1106-04-17-1 | 1106-04-17-2 | 1106-04-17-4 | ||||
| 135kgs (300 lbs) |
W全效輪 W Resolute |
1106-04-48-1 | 1106-04-48-2 | 1106-04-48-4 | ||||
| 180kgs (400 lbs) |
WHDR輪 WHDR |
1106-04-66-1 | 1106-04-66-2 | 1106-04-66-4 | ||||
| 100kgs (220 lbs) |
W超級人造膠 WPPR |
1106-04-47-1 | 1106-04-47-2 | 1106-04-47-4 | ||||
| 180kgs (396 lbs) |
WMRC輪 WMRC |
1106-04-45-1 | 1106-04-45-2 | 1106-04-45-4 | ||||
| 130kgs (285 lbs) |
WPP輪 WPP |
1106-04-46-1 | 1106-04-46-2 | 1106-04-46-4 | ||||
| 135kgs (300 lbs) |
鋁芯橡膠輪 |
1106-04-22-1 | 1106-04-22-2 | 1106-04-22-4 | ||||
| 200kgs (440 lbs) |
鋁芯AQPU QPU on AL Core |
1106-04-87-1 | 1106-04-87-2 | 1106-04-87-4 | ||||
| 70kgs (154 lbs) |
NPPR輪 NPPR |
1106-04-67-1 | 1106-04-67-2 | 1106-04-67-4 | 中管 Plain Bearing |
|||
| 120kgs (256 lbs) |
尼龍輪 Nylon |
1106-04-07-1 | 1106-04-07-2 | 1106-04-07-4 | ||||
| 135kgs (300 lbs) |
耐高溫輪 Hi-temp |
1106-04-25-1 | 1106-04-25-2 | 1106-04-25-4 | ||||
| 80kgs (175 lbs) |
橡膠輪 Rubber | 1106-04-06-1 | 1106-04-06-2 | 1106-04-06-4 | ||||
| 90kgs (198 lbs) |
塑料輪 PP |
1106-04-29-1 | 1106-04-29-2 | 1106-04-29-4 | ||||
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 100mm x 36mm (4" x 1-1/2") |
160 kgs (352 lbs) |
CPD輪 CPD |
1106-04-71-1 | 1106-04-71-2 | 1106-04-71-4 | 滾珠 Ball Bearing |
底板類總高 Plate Version OAH: 137mm (5-25/64") 絲扣類總高 Threaded Stem OAH: 138mm (5-7/16") 插桿類總高 Cylindrical Stem OAH: 135mm (5-5/16") 兩孔角鐵底板總高 Two holes angle bar plate OAH: 136mm (5-23/64") 三孔角鐵底板總高 Three holes angle bar plate OAH: 155mm (6-7/64") |
活動 89mm |
| 160 kgs (352 lbs) |
藍色彈力輪 Blue Resilient Rubber Wheel |
1106-04-50-1 | 1106-04-50-2 | 1106-04-50-4 | ||||
| 140 kgs (308 lbs) |
超級人造膠 TPR on PP Core |
1106-04-77-1 | 1106-04-77-2 | 1106-04-77-4 | ||||
| 160 kgs (352 lbs) |
全效輪 Resolute |
1106-04-76-1 | 1106-04-76-2 | 1106-04-76-4 | ||||
| 200 kgs (440 lbs) |
鋁芯AQPU QPU on AL Core |
1106-04-87-1 | 1106-04-87-2 | 1106-04-87-4 | ||||
| 125mm x 24.5mm (5" x 1") |
70 kgs (155 lbs) |
超級人造膠 TPR on PP Core |
1106-R-05-75-1 | 1106-R-05-75-2 | 1106-R-05-75-4 | 滾珠 Ball Bearing |
底板類總高 Plate Version OAH: 162mm (6-3/8") 絲扣類總高 Threaded Stem OAH: 163mm (6-27/64") 插桿類總高 Cylindrical Stem OAH: 160mm (6-19/64") 兩孔角鐵底板總高 Two holes angle bar plate OAH: 160mm (6-19/64") 三孔角鐵底板總高 Three holes angle bar plate OAH: 188mm (7-13/32") |
活動 101mm |
| 80 kgs (175 lbs) |
全效輪 Resolute |
1106-R-05-68-1 | 1106-R-05-68-2 | 1106-R-05-68-4 | ||||
| 125mm x 32mm (5" x 1-1/4") |
130 kgs (285 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1106-05-31-1 | 1106-05-31-2 | 1106-05-31-4 | 滾珠 Ball Bearing 中管 Plain Bearing |
||
| 110 kgs (240 lbs) |
超級人造膠 TPR on PP Core |
1106-05-75-1 | 1106-05-75-2 | 1106-05-75-4 | ||||
| 100 kgs (220 lbs) |
超級人造膠(大圓弧) TPR on PP Core (Donut) |
1106-05-110-1 | 1106-05-110-2 | 1106-05-110-4 | ||||
| 120 kgs (265 lbs) |
全效輪(大圓弧) Resolute (Donut) |
1106-05-111-1 | 1106-05-111-2 | 1106-05-111-4 | ||||
| 147 kgs (325 lbs) |
全效輪 Resolute |
1106-05-68-1 | 1106-05-68-2 | 1106-05-68-4 | 滾珠 Ball Bearing |
|||
| 90 kgs (198 lbs) |
導電輪 E-conductive |
1106-05-17-1 | 1106-05-17-2 | 1106-05-17-4 | ||||
| 147 kgs (325 lbs) |
W全效輪 W Resolute |
1106-05-48-1 | 1106-05-48-2 | 1106-05-48-4 | ||||
| 180 kgs (400 lbs) |
WHDR輪 WHDR |
1106-05-66-1 | 1106-05-66-2 | 1106-05-66-4 | ||||
| 110kgs (240 lbs) |
W超級人造膠 WPPR |
1106-05-47-1 | 1106-05-47-2 | 1106-05-47-4 | ||||
| 200kgs (440 lbs) |
WMRC輪 WMRC |
1106-05-45-1 | 1106-05-45-2 | 1106-05-45-4 | ||||
| 150kgs (330 lbs) |
WPP輪 WPP |
1106-05-46-1 | 1106-05-46-2 | 1106-05-46-4 | ||||
| 200kgs (440 lbs) |
鋁芯AQPU QPU on AL Core |
1106-05-87-1 | 1106-05-87-2 | 1106-05-87-4 | ||||
| 140kgs (305 lbs) |
尼龍輪 Nylon |
1106-05-07-1 | 1106-05-07-2 | 1106-05-07-4 | 中管 Plain Bearing |
|||
| 90kgs (198 lbs) |
橡膠輪 Rubber | 1106-05-06-1 | 1106-05-06-2 | 1106-05-06-4 | ||||
| 100kgs (220 lbs) |
塑料輪 PP |
1106-05-29-1 | 1106-05-29-2 | 1106-05-29-4 | ||||
| 125mm x 36mm (5" x 1-1/2") |
200kgs (440 lbs) |
CPD輪 CPD |
1106-05-71-1 | 1106-05-71-2 | 1106-05-71-4 | 滾珠 Ball Bearing |
||
| 250kgs (550 lbs) |
藍色彈力輪 Blue Resilient Rubber Wheel |
1106-05-50-1 | 1106-05-50-2 | 1106-05-50-4 | ||||
| 160kgs (352 lbs) |
超級人造膠 TPR on PP Core |
1106-05-77-1 | 1106-05-77-2 | 1106-05-77-4 | ||||
| 180kgs (400 lbs) |
全效輪 Resolute |
1106-05-76-1 | 1106-05-76-2 | 1106-05-76-4 | ||||
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 迴旋半徑 | ||
| 固定 | 活動 | 煞車 | ||||||
| 150mm x 32mm (6" x 1-1/4") |
130kgs (285 lbs) |
高科技耐磨聚氨酯 PU on PP Core |
1106-05-31-1 | 1106-05-31-2 | 1106-05-31-4 | 滾珠 Ball Bearing |
底板類總高 Plate Version OAH: 187mm (7-23/64") 絲扣類總高 Threaded Stem OAH: 188mm (7-13/32") 插桿類總高 Cylindrical Stem OAH: 185mm (7-9/32") 兩孔角鐵底板總高 Two holes angle bar plate OAH: 184mm (7-1/4") 三孔角鐵底板總高 Three holes angle bar plate OAH: 204mm (8-1/32") |
活動 113mm 煞車(一般踏板) 113mm 煞車(長踏板) 125mm 側煞 113mm Swivel 113mm Swivel W/Total lock (regular pedal) 113mm Swivel W/Total lock (Long pedal) 125mm Swivel W/Side Brake 113mm |
| 110kgs (240 lbs) |
超級人造膠 TPR on PP Core |
1106-05-75-1 | 1106-05-75-2 | 1106-05-75-4 | ||||
| 147kgs (325 lbs) |
全效輪 Resolute |
1106-05-68-1 | 1106-05-68-2 | 1106-05-68-4 | ||||
| 147kgs (325 lbs) |
W全效輪 W Resolute |
1106-05-48-1 | 1106-05-48-2 | 1106-05-48-4 | ||||
| 200kgs (440 lbs) |
WHDR輪 WHDR |
1106-05-66-1 | 1106-05-66-2 | 1106-05-66-4 | ||||
| 110kgs (240 lbs) |
W超級人造膠 WPPR |
1106-05-47-1 | 1106-05-47-2 | 1106-05-47-4 | ||||
