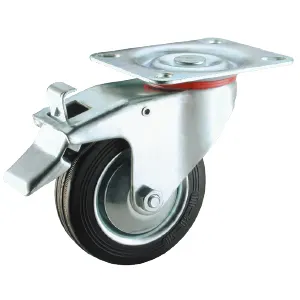

1105系列 — E型系列
適用於迷你台車
特色區
中煞
輪子可附防塵蓋
特色區
中煞
輪子可附防塵蓋
輪子選擇
E型橡膠輪(鐵框)
E型橡膠輪(塑框)
尼龍輪
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 3-1/2"底板 3-1/2" Plate |
85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (2-3/8" x 3-1/8") |
8 mm (5/16") |
| 4" 5"底板 4" 5" Plate |
85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (2-3/8" x 3-1/8") |
8 mm (5/16") |
| 6" 8"底板 6" 8" Plate |
110 x 140 mm (4-3/8" x 5-1/2") | 75 x 105 mm (3" x 4-1/8") |
10 mm (3/8") |
底板規格
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 3-1/2"底板 3-1/2" Plate |
85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (2-3/8" x 3-1/8") |
8 mm (5/16") |
| 規格 Size |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安裝尼帽尺寸 Attaching Bolt Size |
| 3-1/2"底板 3-1/2" Plate |
85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (2-3/8" x 3-1/8") |
8 mm (5/16") |
| 4" 5"底板 4" 5" Plate |
85 x 105 mm (3-5/16" x 4-1/8") | 60 x 80 mm (2-3/8" x 3-1/8") |
8 mm (5/16") |
| 6" 8"底板 6" 8" Plate |
110 x 140 mm (4-3/8" x 5-1/2") | 75 x 105 mm (3" x 4-1/8") |
10 mm (3/8") |
輪子詳細資訊
| 輪徑 × 輪寬 | 載重 | 材質 | 型號 | 軸承 | 總高 | 偏心距 | ||
| 固定 | 活動 | 煞車 | ||||||
| 80 x 35 mm (3-1/2" x 1-3/8") |
50kgs (110lbs) | E型橡膠輪 Rubber Wheel European Style |
1105-35-36-1 | 1105-35-36-2 | 1105-35-36-4 | 滾針 Roller Bearing |
106mm (4-3/16") |
活動67mm 煞車96mm Swivel 67mm Swivel W/Brake 96mm |
| 尼龍輪 Nylon |
1105-35-07-1 | 1105-35-07-2 | 1105-35-07-4 | 中管 Plaib Bearing |
||||
| 100 x 30 mm (4" x 1-3/16") |
70kgs (155lbs) | E型橡膠輪 Rubber Wheel European Style |
1105-04-36-1 | 1105-04-36-2 | 1105-04-36-4 | 滾針 Roller Bearing |
128mm (5") |
活動88mm 煞車125mm Swivel 88mm Swivel W/Brake 125mm |
| 尼龍輪 Nylon |
1105-04-07-1 | 1105-04-07-2 | 1105-04-07-4 | 中管 Plaib Bearing |
||||
| 125 x 37.5 mm (5" x 1-9/16") |
100kgs (220lbs) | E型橡膠輪 Rubber Wheel European Style |
1105-05-36-1 | 1105-05-36-2 | 1105-05-36-4 | 滾針 Roller Bearing |
150mm (6") |
活動103mm 煞車124mm Swivel 103mm Swivel W/Brake 124mm |
| 尼龍輪 Nylon |
1105-05-07-1 | 1105-05-07-2 | 1105-05-07-4 | 中管 Plaib Bearing |
||||
| 160 x 40 mm (6" x 1-9/16") |
155kgs (340lbs) | E型橡膠輪 Rubber Wheel European Style |
1105-06-36-1 | 1105-06-36-2 | 1105-06-36-4 | 滾針 Roller Bearing |
195mm (7-11/16") |
活動120mm 煞車160mm Swivel 120mm Swivel W/Brake 160mm |
| 尼龍輪 Nylon |
1105-06-07-1 | 1105-06-07-2 | 1105-06-07-4 | 中管 Plaib Bearing |
||||
| 200 x 50 mm (8" x 2") |
210kgs (462lbs) | E型橡膠輪 Rubber Wheel European Style |
1105-08-36-1 | 1105-08-36-2 | 1105-08-36-4 | 滾針 Roller Bearing |
235mm (9-1/4") |
活動148mm 煞車161mm Swivel 148mm Swivel W/Brake 161mm |
| 尼龍輪 Nylon |
1105-08-07-1 | 1105-08-07-2 | 1105-08-07-4 | 中管 Plaib Bearing |
||||
