68系列支撐升降輪
Levelling Caster

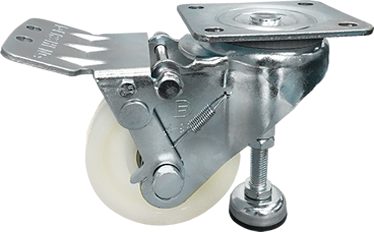

68系列是一款便捷支撐平衡調節架腳輪,踩踏腳架踏板便可使輪子上下移動。在固定設備時, 腳輪收起,腳杯著地時,可精密調整水平,平穩支撐;在移動設備時,腳輪下降,腳杯離地, 可隨意移動設備。

This levelling caster allows customers to move the wheel up and down by activating or deactivating the brake lever. When the lever engaged, the wheel moves down to turn into a swivel caster, allowing the equipment carried to be moved freely. When de-activated, the wheel moves up and turns into a levelling mechanism with secure foot to support the equipment. With the caster foot firmly standing on the ground, customers can adjust the height of the foot to reach the horizontal balance needed for the equipment.
支撐升降輪 支撐升降輪 支撐升降輪
導電橡膠墊   尼龍輪 金剛輪 尼龍輪
尼龍輪(45寬)
Nylon
金鋼輪
King Kong Wheel
尼龍輪
Nylon
ZQPU輪 QPU輪 鋁芯AQPU
導電橡膠墊
E-Conductive Rubber
  ZQPU
QPU (Dual Wheels)
QPU
QPU
鋁芯AQPU
QPU on AL Core

編號
Suffix
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
* 1 85 x 105 mm (3-5/16" x 4-1/8") 60 x 80 mm (歐規底板)
8 mm (5/16")
2 100 x 115 mm (24" x 4-1/2") 70 x 85 mm (D型底板)
(2-5/8"~3"x3"~3-5/8")
10 mm (3/8")

* 2.5"無支撐腳輪只搭配歐規底板。

   2.5" caster only fit with European Plate.











輪子尺寸
Size
材質
Material
輪徑
Wheel
Diameter
(mm)
D
輪寬
Wheel
Width
(mm)
載重
Dynamic
Load
支撐腳
靜壓
荷重

Static Load
with Foot
軸承
Bearing
總高
Overall
Height
(mm)
H
最大總高
Max.
Overall
Height
(mm)
h
上升距離
Lifting
Distance
(mm)
T
最大離地間距
Max
Foot Floor
Clearance
(mm)
t
偏心距
Offset
(mm)
迴旋半徑
Swivel Radius
(mm)
R
型號
Item Number
2.5" 尼龍輪
Nylon
64 45 200kgs
(440 lbs)
1000kgs
(2200 lbs)
滾珠
Ball Bearing
96 108 6 6 56 短踏板 135mm
長踏板 147mm

Short pedal 135mm
Long pedal 147mm
1168-25-07-10
金鋼輪
King Kong Wheel
62.5 45 200kgs
(440 lbs)
95 107 7 5 56 1168-25-100-10
QPU
QPU
62.5 45 200kgs
(440 lbs)
1168-25-80-10
ZQPU
ZQPU(Dual Wheels)
62.5 20x2 200kgs
(440 lbs)
1168-25-101-10
3" 尼龍輪
Nylon
75 45 260kgs
(570 lbs)
1000kgs
(2200 lbs)
滾珠
Ball Bearing
114 126 6 6 56 短踏板 135mm
長踏板 147mm

Short pedal 135mm
Long pedal 147mm
1168-03-07-10
金鋼輪
King Kong Wheel
75 45 260kgs
(570 lbs)
1168-03-100-10
QPU
QPU
75 45 260kgs
(570 lbs)
1168-03-80-10
ZQPU
ZQPU(Dual Wheels)
75 20x2 260kgs
(570 lbs)
1168-03-101-10
4" 尼龍輪
Nylon
100 32 320kgs
(700 lbs)
1000kgs
(2200 lbs)
滾珠
Ball Bearing
136.5 148.5 6 6 65 短踏板 142mm
長踏板 157mm

Short pedal 142mm
Long pedal 157mm
1168-04-07-10
尼龍輪
Nylon
100 38 250kgs
(550 lbs)
1168-04-07-10
AQPU
QPU on AL Core
100 40 320kgs
(700 lbs)
1168-04-87-10
ZQPU
ZQPU(Dual Wheels)
100 22x2 320kgs
(700 lbs)
1168-04-101-10









輪子尺寸
Size
固定
Fixed
活動
Swivel
*2.5" 尼龍輪
Nylon
75 45 260kgs
(570 lbs)
1168-25-07-1 1168-25-07-2 滾珠軸承
Ball Bearing
102mm 31mm 68.5mm
金鋼輪
King Kong Wheel
75 45 260kgs
(570 lbs)
1168-25-100-1 1168-25-100-2
QPU
QPU
75 45 260kgs
(570 lbs)
1168-25-80-1 1168-25-80-2
ZQPU
ZQPU(Dual Wheels)
75 20x2 260kgs
(570 lbs)
1168-25-101-1 1168-25-101-2
3" 尼龍輪
Nylon
75 45 260kgs
(570 lbs)
1168-03-07-1 1168-03-07-2 滾珠軸承
Ball Bearing
120mm 40mm 77.5mm
金鋼輪
King Kong Wheel
75 45 260kgs
(570 lbs)
1168-03-100-1 1168-03-100-2
QPU
QPU
75 45 260kgs
(570 lbs)
1168-03-80-1 1168-03-80-2
ZQPU
ZQPU(Dual Wheels)
75 20x2 260kgs
(570 lbs)
1168-03-101-1 1168-03-101-2
4" 尼龍輪
Nylon
100 32 320kgs
(700 lbs)
1168-04-07-1 1168-04-07-2 滾珠軸承
Ball Bearing
142.5mm 40mm 90mm
尼龍輪
Nylon
100 36 250kgs
(550 lbs)
1168-04-07-1 1168-04-07-2
AQPU
QPU on AL Core
100 40 320kgs
(700 lbs)
1168-04-87-1 1168-04-87-2
ZQPU
ZQPU(Dual Wheels)
100 22x2 320kgs
(700 lbs)
1168-04-101-1 1168-04-101-2

* 2.5"無支撐腳輪只搭配歐規底板。

   2.5" caster only fit with European Plate.
