長珠系列
2" Wide General Purposes Caster (American Style)
高負載且轉動靈活,普遍適用於一般工廠搬運,另可附防塵蓋,屬得貹專利產品,且可有效防止腳輪因灰塵或纏絲而無法轉動,提高腳輪使用壽命。

Swivel easily under heavy load, good for workshop carts. Patented thread guards and dust covers prevent swivel failute caused by build-up of strings between the wheel and fork legs, as well as the dust in the wheel bearing.

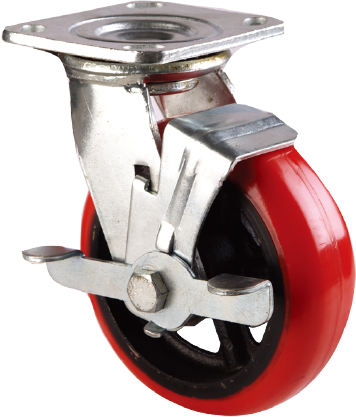

側剎
Side Lock Brake

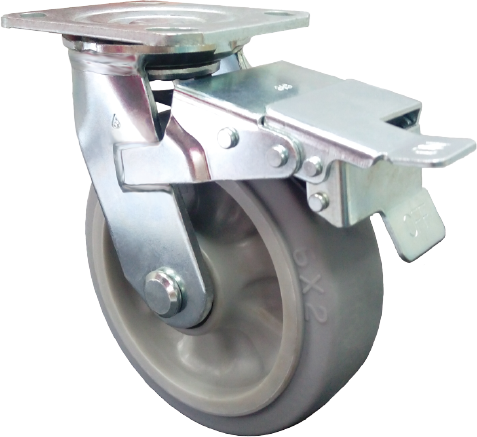

AK煞
AK Total Lock Brake

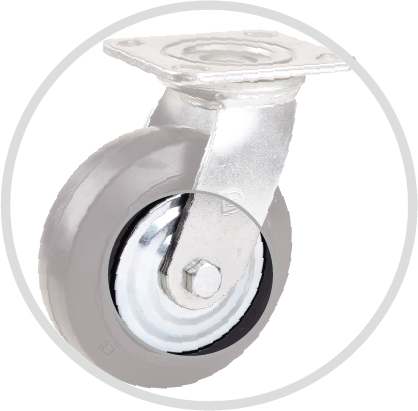

輪子可附防塵蓋
Thread guard

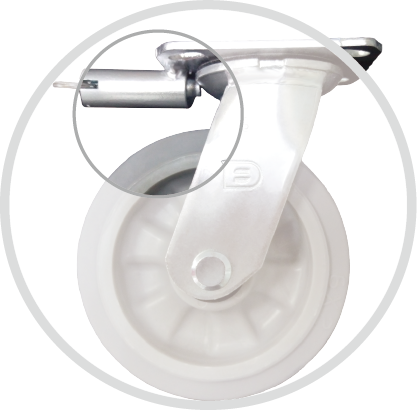

定向桿
Directional Lock
PU輪面可以變化硬度
Different PU tread handness available
高科技耐磨聚氨酯(圓弧形)
PU on PP Core
(Round Shape)
鐵芯NBR橡膠輪
NBR Rubber on Cast
鐵芯聚氨酯
PU on Cast
超級人造膠(圓弧形)
TPR on PP Core
(Round Shape)
超級人造膠(平面)
TPR on PP Core
(Flat Shape)
鐵芯聚氨酯(圓弧形)
PU on Cast
(Round Shape)
電木輪
Phenolic
高科技耐磨聚氨酯
PU on PP Core
SS鐵輪
Cast Iron
VG
V Groove
SPU
CPU on PP Core
EPU
EPU
W超級人造膠
WPPR
W全效輪
W Resolute Wheel
全效輪(平面)
Resolute(Flat Shape)
全效輪(圓弧形)
Resolute
(Round Shape)
HDR輪(圓弧形)
HD Resolute Wheel(Round Shape)
WHDR
WHDR
EQPU
EQPU

編號
Suffix
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
1 100 x 115 mm (4"x 4-1/2") 70 x 85mm (2-5/8"~3"x3"~3-5/8") 9.5mm (3/8")
2 115 x 159 mm (4-1/2"x 6-1/4") 75 x 130mm (2-7/16"~3-3/8" x 4-15/16"~5-1/4") 12.7mm (1/2")

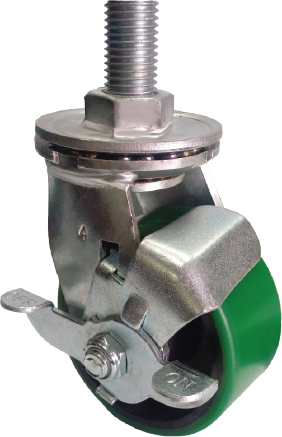

編號 Suffix 絲扣牙徑 x 長度 Threaded Size
4" 5" 6" 8" M24 x 150mm

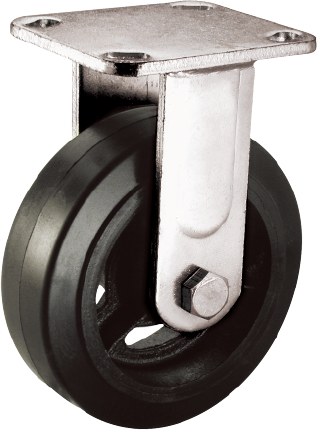

固定
Fixed

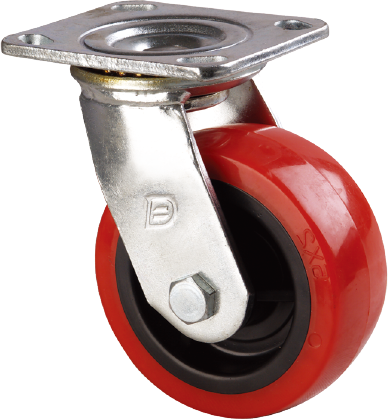

活動
Swivel
煞車
Brake
100mm x 50mm
(4" x 2")
270 kgs
(600 lbs)
高科技耐磨聚氨酯(圓弧形)
PU on PP Core
(Round Shape)
1112-04-43-1 1112-04-43-2 1112-04-43-4 滾珠
Ball Bearing
142mm
(5-5/8")

活動 74.5mm
側剎 78.5mm
AK剎 136.5mm

Swivel 74.5mm

Swivel W/Side brake 78.5mm

AK Total Lock Brake 136.5mm

200 kgs
(440 lbs)
鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1112-04-42-1 1112-04-42-2 1112-04-42-4
150 kgs
(325 lbs)
鐵芯NBR橡膠輪
NBR Rubber on Cast
1112-04-04-1 1112-04-04-2 1112-04-04-4 滾針
Roller Bearing
270 kgs
(600 lbs)
鐵芯聚氨酯
PU on Cast
1112-04-33-1 1112-04-33-2 1112-04-33-4
360 kgs
(800 lbs)
電木輪
Phenolic
1112-04-25-1 1112-04-25-2 1112-04-25-4
270 kgs
(600 lbs)
高科技耐磨聚氨酯
PU on PP Core
1112-04-31-1 1112-04-31-2 1112-04-31-4
360 kgs
(800 lbs)
SS鐵輪
Cast Iron
1112-04-21-1 1112-04-21-2 1112-04-21-4
360 kgs
(800 lbs)
VG
V Groove
1112-04-28-1 1112-04-28-2 1112-04-28-4
120 kgs
(265 lbs)
超級人造膠(圓弧形)
TPR on PP Core (Round Shape)
1112-04-26-1 1112-04-26-2 1112-04-26-4 滾針
Roller Bearing

精密長珠軸承
Annular ball bearing
150 kgs
(330 lbs)
超級人造膠(平面)
TPR on PP Core (Flat Shape)
1112-04-52-1 1112-04-52-2 1112-04-52-4
150 kgs
(330 lbs)
W超級人造膠
WPPR
1112-04-47-1 1112-04-47-2 1112-04-47-4
181 kgs
(400 lbs)
W全效輪
W Resolute
1112-04-48-1 1112-04-48-2 1112-04-48-4
181 kgs
(400 lbs)
全效輪(平面)
Resolute(Flat Shape)
1112-04-51-1 1112-04-51-2 1112-04-51-4
136 kgs
(300 lbs)
全效輪(圓弧形)
Resolute (Round Shape)
1112-04-44-1 1112-04-44-2 1112-04-44-4
228 kgs
(500 lbs)
HDR輪(圓弧形)
HD Resolute Wheel(Round Shape)
1112-04-54-1 1112-04-54-2 1112-04-54-4
270 kgs
(600 lbs)
WHDR
WHDR
1112-04-55-1 1112-04-55-2 1112-04-55-4
125mm x 50mm
(5" x 2")
340 kgs
(750 lbs)
高科技耐磨聚氨酯(圓弧形)
PU on PP Core
(Round Shape)
1112-05-43-1 1112-05-43-2 1112-05-43-4 滾珠
Ball Bearing
167mm
(6-1/2")
活動 92.5mm
側剎 92.5mm
AK剎 140mm

Swivel 92.5mm

Swivel W/Side brake 92.5mm

AK Total Lock Brake 140mm
230 kgs
(500 lbs)
鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1112-05-42-1 1112-05-42-2 1112-05-42-4
340 kgs
(750 lbs)
SPU
CPU on PP core
1112-05-63-1 1112-05-63-2 1112-05-63-4
360 kgs
(790 lbs)
EPU
EPU
1112-05-78-1 1112-05-78-2 1112-05-78-4
450 kgs
(990 lbs)
EQPU
EQPU
1112-05-81-1 1112-05-81-2 1112-05-81-4
200 kgs
(440 lbs)
鐵芯NBR橡膠輪
NBR Rubber on Cast
1112-05-04-1 1112-05-04-2 1112-05-04-4 滾針
Roller Bearing
360 kgs
(790 lbs)
鐵芯聚氨酯
PU on Cast
1112-05-33-1 1112-05-33-2 1112-05-33-4
400 kgs
(880 lbs)
電木輪
Phenolic
1112-05-25-1 1112-05-25-2 1112-05-25-4
340 kgs
(750 lbs)
高科技耐磨聚氨酯
PU on PP Core
1112-05-31-1 1112-05-31-2 1112-05-31-4
400 kgs
(880 lbs)
SS鐵輪
Cast Iron
1112-05-21-1 1112-05-21-2 1112-05-21-4
400 kgs
(880 lbs)
VG
V Groove
1112-05-28-1 1112-05-28-2 1112-05-28-4
140 kgs
(300 lbs)
超級人造膠(圓弧形)
TPR on PP Core (Round Shape)
1112-05-26-1 1112-05-26-2 1112-05-26-4 滾針
Roller Bearing

精密長珠軸承
Annular ball bearing
180 kgs
(396 lbs)
超級人造膠(平面)
TPR on PP Core (Flat Shape)
1112-05-52-1 1112-05-52-2 1112-05-52-4
180 kgs
(396 lbs)
W超級人造膠
WPPR
1112-05-47-1 1112-05-47-2 1112-05-47-4
227kgs
(500 lbs)
W全效輪
W Resolute
1112-05-48-1 1112-05-48-2 1112-05-48-4
227kgs
(500 lbs)
全效輪(平面)
Resolute(Flat Shape)
1112-05-51-1 1112-05-51-2 1112-05-51-4
170kgs
(375 lbs)
全效輪(圓弧形)
Resolute (Round Shape)
1112-05-44-1 1112-05-44-2 1112-05-44-4
261kgs
(575 lbs)
HDR輪(圓弧形)
HD Resolute Wheel(Round Shape)
1112-05-54-1 1112-05-54-2 1112-05-54-4
340kgs
(750 lbs)
WHDR
WHDR
1112-05-55-1 1112-05-55-2 1112-05-55-4


固定
Fixed
活動
Swivel
煞車
Brake
150mm x 50mm
(6" x 2")
410 kgs
(900 lbs)
高科技耐磨聚氨酯(圓弧形)
PU on PP Core
(Round Shape)
1112-06-43-1 1112-06-43-2 1112-06-43-4 滾珠
Ball Bearing
190mm
(7-1/2")

活動 111mm
側剎 111mm
AK剎 154mm

Swivel 111mm

Swivel W/Side brake 111mm

AK Total Lock Brake 154mm

260 kgs
(570 lbs)
鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1112-06-42-1 1112-06-42-2 1112-06-42-4
410 kgs
(900 lbs)
SPU
CPU on PP core
1112-06-63-1 1112-06-63-2 1112-06-63-4
450 kgs
(990 lbs)
EPU
EPU
1112-06-78-1 1112-06-78-2 1112-06-78-4
450 kgs
(990 lbs)
EQPU
EQPU
1112-06-81-1 1112-06-81-2 1112-06-81-4
250 kgs
(550 lbs)
鐵芯NBR橡膠輪
NBR Rubber on Cast
1112-06-04-1 1112-06-04-2 1112-06-04-4 滾針
Roller Bearing
410 kgs
(900 lbs)
鐵芯聚氨酯
PU on Cast
1112-06-33-1 1112-06-33-2 1112-06-33-4
420 kgs
(925 lbs)
電木輪
Phenolic
1112-06-25-1 1112-06-25-2 1112-06-25-4
410 kgs
(900 lbs)
高科技耐磨聚氨酯
PU on PP Core
1112-06-31-1 1112-06-31-2 1112-06-31-4
420 kgs
(925 lbs)
SS鐵輪
Cast Iron
1112-06-21-1 1112-06-21-2 1112-06-21-4
420 kgs
(925 lbs)
VG
V Groove
1112-06-28-1 1112-06-28-2 1112-06-28-4
160 kgs
(350 lbs)
超級人造膠(圓弧形)
TPR on PP Core (Round Shape)
1112-06-26-1 1112-06-26-2 1112-06-26-4 滾針
Roller Bearing

精密長珠軸承
Annular ball bearing
210 kgs
(462 lbs)
超級人造膠(平面)
TPR on PP Core (Flat Shape)
1112-06-52-1 1112-06-52-2 1112-06-52-4
210 kgs
(462 lbs)
W超級人造膠
WPPR
1112-06-47-1 1112-06-47-2 1112-06-47-4
272 kgs
(600 lbs)
W全效輪
W Resolute
1112-06-48-1 1112-06-48-2 1112-06-48-4
272 kgs
(600 lbs)
全效輪(平面)
Resolute(Flat Shape)
1112-06-51-1 1112-06-51-2 1112-06-51-4
204 kgs
(450 lbs)
全效輪(圓弧形)
Resolute (Round Shape)
1112-06-44-1 1112-06-44-2 1112-06-44-4
295 kgs
(650 lbs)
HDR輪(圓弧形)
HD Resolute Wheel(Round Shape)
1112-06-54-1 1112-06-54-2 1112-06-54-4
410 kgs
(900 lbs)
WHDR
WHDR
1112-06-55-1 1112-06-55-2 1112-06-55-4
200mm x 50mm
(8" x 2")
420 kgs
(925 lbs)
高科技耐磨聚氨酯(圓弧形)
PU on PP Core
(Round Shape)
1112-08-43-1 1112-08-43-2 1112-08-43-4 滾珠
Ball Bearing
240mm
(9-1/2")
活動 140mm
側剎 140mm
AK剎 160mm

Swivel 140mm

Swivel W/Side brake 140mm

AK Total Lock Brake 160mm
300 kgs
(660 lbs)
鐵芯聚氨酯(圓弧形)
PU on Cast(Round Shape)
1112-08-42-1 1112-08-42-2 1112-08-42-4
420 kgs
(925 lbs)
SPU
CPU on PP core
1112-08-63-1 1112-08-63-2 1112-08-63-4
450 kgs
(990 lbs)
EPU
EPU
1112-08-78-1 1112-08-78-2 1112-08-78-4
450 kgs
(990 lbs)
EQPU
EQPU
1112-08-81-1 1112-08-81-2 1112-08-81-4
300 kgs
(660 lbs)
鐵芯NBR橡膠輪
NBR Rubber on Cast
1112-08-04-1 1112-08-04-2 1112-08-04-4 滾針
Roller Bearing
420 kgs
(925 lbs)
鐵芯聚氨酯
PU on Cast
1112-08-33-1 1112-08-33-2 1112-08-33-4
450 kgs
(990 lbs)
電木輪
Phenolic
1112-08-25-1 1112-08-25-2 1112-08-25-4
420 kgs
(925 lbs)
高科技耐磨聚氨酯
PU on PP Core
1112-08-31-1 1112-08-31-2 1112-08-31-4
450 kgs
(990 lbs)
SS鐵輪
Cast Iron
1112-08-21-1 1112-08-21-2 1112-08-21-4
450 kgs
(990 lbs)
VG
V Groove
1112-08-28-1 1112-08-28-2 1112-08-28-4
185 kgs
(400 lbs)
超級人造膠(圓弧形)
TPR on PP Core (Round Shape)
1112-08-26-1 1112-08-26-2 1112-08-26-4 滾針
Roller Bearing

精密長珠軸承
Annular ball bearing
230 kgs
(506 lbs)
超級人造膠(平面)
TPR on PP Core (Flat Shape)
1112-08-52-1 1112-08-52-2 1112-08-52-4
230 kgs
(506 lbs)
W超級人造膠
WPPR
1112-08-47-1 1112-08-47-2 1112-08-47-4
306 kgs
(506 lbs)
W全效輪
W Resolute
1112-08-48-1 1112-08-48-2 1112-08-48-4
306 kgs
(506 lbs)
全效輪(平面)
Resolute(Flat Shape)
1112-08-51-1 1112-08-51-2 1112-08-51-4
272 kgs
(600 lbs)
全效輪(圓弧形)
Resolute (Round Shape)
1112-08-44-1 1112-08-44-2 1112-08-44-4
318 kgs
(700 lbs)
HDR輪(圓弧形)
HD Resolute Wheel(Round Shape)
1112-08-54-1 1112-08-54-2 1112-08-54-4
430 kgs
(950 lbs)
WHDR
WHDR
1112-08-55-1 1112-08-55-2 1112-08-55-4
