日式輪系列(重型)
  Heavy Duty General Purposes Caster (Japanese Style)
轉動靈活寧靜, 腳架已有特殊加強, 強度大幅度提升及抗衝擊, 另有側剎可供選擇
Reinforce fork design to further improve load rating and impact resistance, Side lock brake is available.

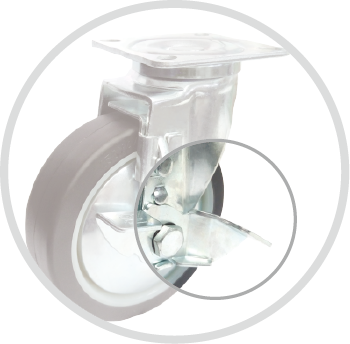

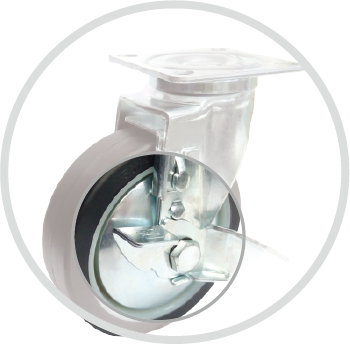

側剎
Side Lock Brake

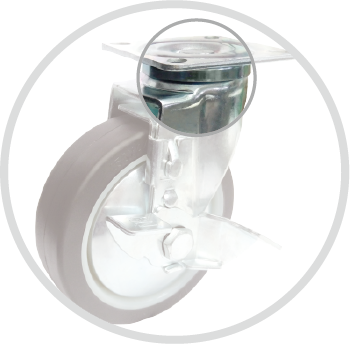

波盤防塵蓋
Swivel Dust Cover
輪子可附金屬防塵蓋
Metal Thread Guard
鐵芯日式橡膠輪
Rubber on Steel Core

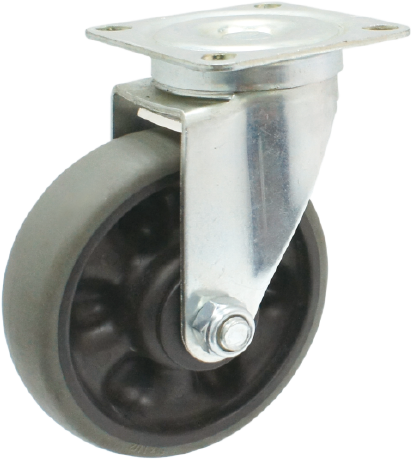

尼龍輪
Nylon
高科技耐磨聚氨酯(尼龍芯)
PU on PA Core
W全效輪
W Resolute

鋁芯AQPU
QPU on AL Core
EQPU
EQPU
鋁芯橡膠輪
Rubber on AL Core
WMRC
WMRC


腳輪尺寸
Caster Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
4",5",6"活動底板
4",5",6" Swivel plate
101 x 101 mm (4" x 4") 78 x 78 mm (3-1/16" x 3-1/16") 10 mm (3/8")




腳輪尺寸
Caster Size
底板尺寸
Top Plate Size
底板孔距
Bolt Hole Spacing
安裝尼帽尺寸
Attaching Bolt Size
5",6"固定底板
5",6" Rigid plate
91 x 140 mm (3-9/16" x 5-1/2") 55 x 105 mm (2-1/8" x 4-1/8") 10 mm (3/8")

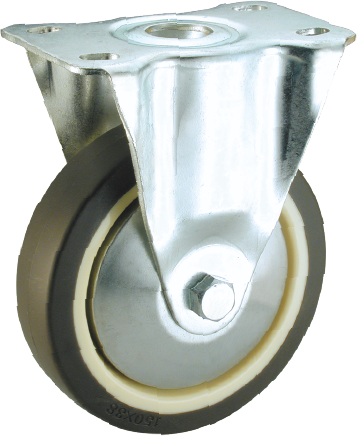

固定
Fixed

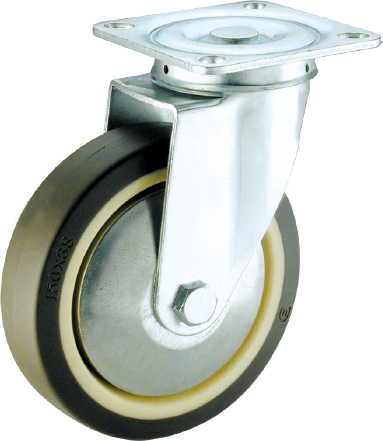

活動
Swivel

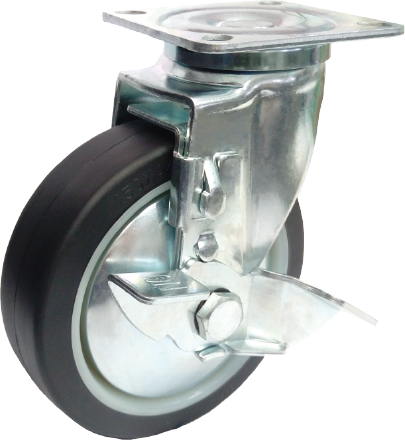

煞車
Brake
100mm x 32mm
(4"x1-1/4")
250 kgs
(550 lbs)
尼龍輪
Nylon
- 1108-H-04-07-2 1108-H-04-07-4 滾珠軸承
Ball Bearing
138mm
(5-7/16")

活動 87.5mm
Swivel 67mm


側剎 87.5mm
Swivel W/Side brake 87.5mm

100mm x 36mm
(4"x1-7/16")
270 kgs
(594 lbs)
鋁芯AQPU(圓弧)
QPU on AL Core (Round)
- 1108-H-04-87-2 11108-H-04-87-4
140 kgs
(308 lbs)
W全效輪
W Resolute
- 1108-H-04-64-2 1108-H-04-64-4
100mm x 40mm
(4"x1-9/16")
300 kgs
(660 lbs)
鋁芯AQPU(圓弧)
QPU on AL Core (Round)
- 1108-H-04-87(40)-2 1108-H-04-87(40)-4
200 kgs
(440 lbs)
鋁芯橡膠輪
Rubber on AL Core
- 1108-H-04-22-2 1108-H-04-22-4
125mm x 38mm
(5"x1-1/2")
160 kgs
(352 lbs)
W全效輪
W Resolute
1108-H-05-64-1 1108-H-05-64-2 1108-H-05-64-4 滾珠軸承
Ball Bearing
168mm
(6-5/8")

活動 98.5mm
Swivel 98.5mm


側剎 98.5mm
Swivel W/Side brake 98.5mm

125mm x 40mm
(5"x1-9/16")
300 kgs
(660 lbs)
尼龍輪
Nylon
1108-H-05-07-1 1108-H-05-07-2 1108-H-05-07-4
300 kgs
(660 lbs)
鋁芯AQPU(圓弧)
QPU on AL Core(Round)
1108-H-05-87-1 1108-H-05-87-2 1108-H-05-87-4
300 kgs
(660 lbs)
EQPU輪(圓弧)
EQPU(Round)
1108-H-05-81-1 1108-H-05-81-2 1108-H-05-81-4
250 kgs
(550 lbs)
鋁芯橡膠輪
Rubber on AL Core
1108-H-05-22-1 1108-H-05-22-2 1108-H-05-22-4
150mm x 38mm
(6"x1-1/2")
180kgs
(396 lbs)
W全效輪
W Resolute
1108-H-06-64-1 1108-H-06-64-2 1108-H-06-64-4 滾珠軸承
Ball Bearing
191mm
(7-1/2")
活動 113mm
Swivel 113mm


側剎 113mm
Swivel W/Side brake 113mm
150mm x 40mm
(6"x1-9/16")
160kgs
(352 lbs)
鐵芯日式橡膠輪
Swivel Dust Cover
1108-H-06-18-1 1108-H-06-18-2 1108-H-06-18-4
300kgs
(660 lbs)
WMRC
WMRC
1108-H-06-45-1 1108-H-06-45-2 1108-H-06-45-4
280kgs
(616 lbs)
鋁芯橡膠輪
Rubber on AL Core
1108-H-06-22-1 1108-H-06-22-2 1108-H-06-22-4
150mm x 42mm
(6"x1-5/8")
300kgs
(660 lbs)
鋁芯AQPU(圓弧)
QPU on AL Core(Round)
1108-H-06-87-1 1108-H-06-87-2 1108-H-06-87-4
300kgs
(660 lbs)
EQPU輪(圓弧)
EQPU(Round)
1108-H-06-81-1 1108-H-06-81-2 1108-H-06-81-4
150mm x 44mm
(6"x1-3/4")
200kgs
(440 lbs)
高科技耐磨聚氨酯(尼龍芯)
PU on PA Core
1108-H-06-34-1 1108-H-06-34-2 1108-H-06-34-4
